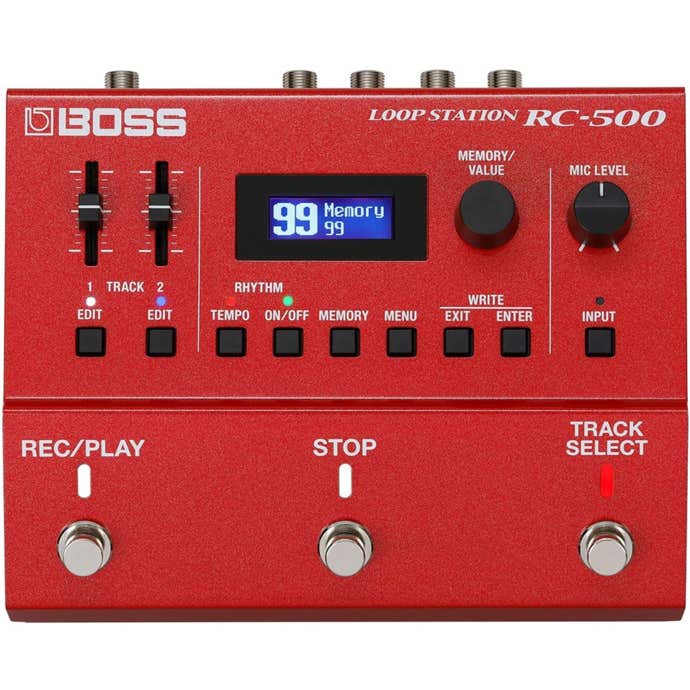

| Product Specifications | Boss RC500 Loop Station Pedal Specifications
-
Sampling Frequency: 44.1 kHz
-
AD/DA Conversion: 32 bits
-
Processing: 32-bit floating point
-
Recording/Playback:
-
Number of Tracks: 2
-
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
-
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
-
Rhythm Type: 57 Patterns x 2 Variations
-
Rhythm Kit: 16 types
-
Effect:
-
LOOP FX (only for loop tracks)
-
Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK
-
Reverb (only for rhythm part)
-
Memory: 99
-
Nominal Input Level:
-
MIC IN: -40 dBu (variable)
-
INST IN A/MONO、B: -10 dBu
-
Maximum Input Level:
-
MIC IN:+8 dBu
-
INST IN A/MONO, B: +8 dBu
- Input Impedance:
-
MIC IN: 4 k ohms
-
INST IN A/MONO, B: 1 M ohm
-
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
-
Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
-
Output Impedance: OUTPUT A/MONO, B: 1 k ohm
-
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
-
Bypass: Buffered bypass
-
Controls:
-
REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button
-
Display: Graphic LCD (96 x 32 dots, RGB backlit LCD)
-
Connectors:
-
INST IN A/MONO, B jacks: 1/4-inch phone type
-
MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
-
OUTPUT A/MONO, B jacks: 1/4-inch phone type
-
CTL 1,2/EXP jack: 1/4-inch TRS phone type
-
USB port: USB micro B type
-
MIDI (IN, OUT) jacks: stereo miniature type
-
DC IN jack
-
Power Supply:
-
Alkaline battery (AA, LR6) x 4
-
AC adaptor (PSA-S series: sold separately)
-
Current Draw:
-
330 mA (with phantom power)
-
240 mA (without phantom power)
-
Expected battery life: under continuous use (These figures will vary depending on the actual conditions of use.)
-
Alkaline: Approx. 3.5 hours (without phantom power), Approx. 2 hours (with phantom power)
-
Dimensions (WxDxH): 6-3/4 x 5-7/16 x 2-3/8 inches (excluding rubber foot)
-
Weight: 850g / 1.9 lbs (excluding battery)
-
Accessories:
-
Owner's Manual
-
Leaflet "USING THE UNIT SAFELY"
-
Alkaline battery (AA, LR6) x 4
-
Rubber foot x 4
-
Options (sold separately):
-
AC adaptor: PSA-S series
-
Footswitch: FS-5U
-
Dual Footswitch: FS-6, FS-7
-
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
-
TRS/MIDI connecting cable: BMIDI-5-35
-
* 0 dBu = 0.775 Vrms
|
