Universal Audio Volt 876 24x28 USB Audio Interface

The Volt 876 USB Recording Studio is a 24-in / 28-out rackmount audio interface with 8 Vintage preamps and 1176-style analog compressors. Features 32-bit / 192 kHz conversion.

OR

h m s

free-shipping-icon
In Stock!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    Free Extended Warranty

    Free 12 Month Extended Warranty

    You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    Rock Now Pay Later

    0% Interest Payment Plan

    Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    Everything You Need for Professional Studio Sound

    The Universal Audio Volt 876 isn't just another audio interface; it's your personal hit factory, neatly packed into a rugged, stylish box. Imagine having the keys to a legendary recording studio—the warm glow of vintage preamps, the punch of classic compressors, and the pristine clarity of professional-grade conversion. That's the Volt 876. We packed it with everything you need to capture your music with the character and polish it deserves.

    From the first note you play to the final mix, the Volt 876 delivers a beautifully integrated and sonically superior recording experience. It’s built for serious producers who demand serious sound.

    Universal Audio Volt 876 Capture Your Signature Sound

    Capture Your Signature Sound

    What’s the secret sauce behind countless iconic records? It's often the character of the gear. With the Volt 876, that legendary sound is yours.

    Next-Generation Audio Fidelity: Record and mix with stunning detail and clarity thanks to class-leading 32-bit/192 kHz audio conversion. Hear every nuance of your performance, exactly as intended.

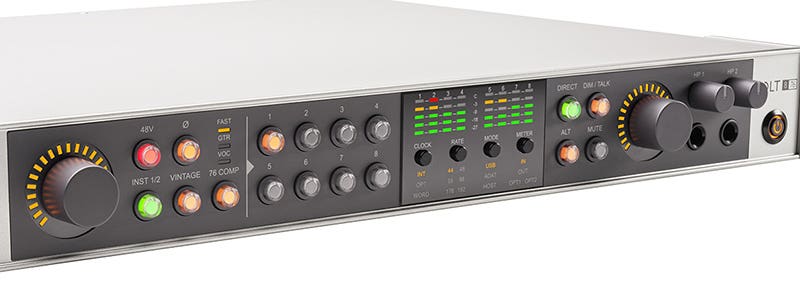

    • Eight Legendary Vintage Preamps: Engage the Vintage Mic Preamp mode and infuse your tracks with the rich, full sound of an iconic UA 610 tube preamp. Perfect for adding warmth and presence to vocals, guitars, and anything else you plug in.
    • Iconic 1176-Style Compression: Add album-ready punch and presence with eight onboard 76 Compressors. This innovative analog circuit, inspired by UA's renowned 1176, offers presets to expertly tame vocals, guitars, synths, and drums. Just plug in, pick a setting, and get that polished, professional sound instantly.
    • Create Anywhere, on Any Device: Whether you’re in your studio or on the move, the Volt 876 is ready. It’s fully compatible with Mac, PC, iPad, and iPhone, giving you the freedom to create wherever inspiration strikes.

    A Studio That Grows With You

    Your creative ambitions shouldn't be limited by your gear. The Volt 876 is designed to be the central hub of your studio, today and tomorrow. With expansive ADAT I/O, you can link up to three Volt 876 interfaces to create a massive 24-channel recording system or integrate seamlessly with Apollo and other ADAT-equipped gear. The possibilities are practically endless.

    Universal Audio Volt 876 A Studio That Grows with You
    Universal Audio Volt 876 Your All-Access Pass to Pro-Level Production

    Your All-Access Pass to Pro-Level Production

    Right out of the box, the Volt 876 arms you with a powerhouse of music production tools. It includes the UAD Producer Suite, a premium collection of plug-ins featuring Teletronix LA-2A and UA 1176 compressors, Pultec EQs, and more. Paired with UA's LUNA Digital Audio Workstation, you get a deeply integrated recording system with smart, AI-powered tools and unlimited tracks, giving you the feel of an analog studio with the power of modern software.

    Ready to elevate your sound? Add the Universal Audio Volt 876 to your setup and start making records that truly stand out.

    Universal Audio Volt 876 24x28 USB Audio Interface Features:

    • 24-in / 28-out USB audio interface with eight preamps and cutting-edge 32-bit / 192 kHz audio conversion
    • Vintage Mic Preamp mode on every channel for recording your voice, guitar, synths, or band with the rich, full sound of an iconic UA 610 tube preamp
    • UA 76 Compressors on every channel to add clarity and punch to vocals, drums, instruments, and other sources with analog circuit based on UA's renowned 1176
    • Digitally-controlled mic preamps with Assistive Auto-Gain and full session recall with UAD Console app and LUNA Digital Audio Workstation

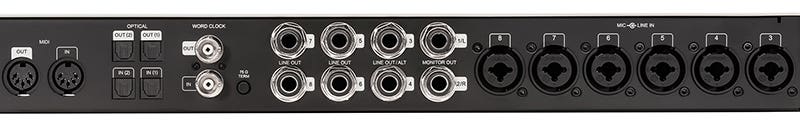

    • 16-in / 16-out ADAT connectivity for digital expansion and linking of up to three Volt 876 interfaces to form the ultimate 24 x 28 recording system
    • Standalone ADAT mode to connect Volt 876 to third-party interfaces or Apollo over ADAT as an 8 x 8 I/O preamp expander
    • Onboard talkback microphone for effortless studio communication
    • Realtime direct monitoring with dedicated front panel controls, plus two stereo low-latency cue mixes when used with UAD Console or LUNA DAW
    • Class-compliant for hassle-free set-up with Mac, iPad, and iPhone
    • Windows systems require the WDM driver, available within the UA Connect app
    • Two studio-quality headphone amplifiers for loud, clear monitoring and effortless collaboration
    • 48V phantom power for condenser microphones (selectable per channel)
    • Stylish, rugged construction built to withstand years of use, with included rack ears and rubber feet for desktop or 1U rack mounting options
    Shop Similar Models

    Universal Audio Volt 876 24x28 USB Audio Interface Specifications

    Universal Audio Volt 876 24x28 USB Audio Interface Specifications
    Product Specifications
    • Included UA Software:
      • LUNA Digital Audio Workstation
      • Featuring Volt 876 remote-control integration and AI-powered tools
      • Teletronix LA-2A Tube Compressor
      • UA 1176 Classic FET Compressor
      • Pultec Passive EQ Collection
      • Century Tube Channel Strip
      • Oxide Tape Recorder
      • Verve Analog Machines Essentials
      • Pure Plate Reverb
      • Galaxy Tape Echo
      • PolyMAX Synth
      • Showtime ‘64 Tube Guitar Amp
    • Included 3rd Party Software:
      • Ableton Live Lite
      • Melodyne Essential by Celemony
      • Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
      • Marshall Plexi Classic Amp Bundle by Softube
      • Virtual Drummer DEEP by UJAM
      • Virtual Bassist DANDY by UJAM
      • LABS by Spitfire Audio
    • I/O:
      • Monitor Outputs:
        • Two stereo (Main and Alt. Monitors)
        • Main (Line Out 1-2), Alt (Line Out 3-4)
      • Headphone Output: Two stereo
      • USB: One USB 2.0 port (USB Type-C connector)
      • MIDI: In, Out (two 5-pin DIN connectors)
      • Digital / Optical: Two in, Two out
      • ADAT (S/MUX capable):
        • 16 channels @ 44.1 to 48 kHz (fs1)
        • 8 channels @ 88.2 to 96 kHz (fs2)
        • 4 channels @ 176.4 to 192 kHz (fs3)
      • S/PDIF (Toslink): Stereo at all sample rates
      • A/D – D/A Conversion:
      • Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
      • Bit Depth: 32
    • ANALOG I/O:
      • Microphone Input(s) Channels 1-8:
      • Frequency Response: 20 Hz to 20 kHz, ±0.1 dB
      • Dynamic Range (A–weighted):  116 dB
      • THD + Noise (1 kHz @ -1 dBFS):  -110 dB (0.0003%)
      • Maximum Input Level:  14 dBu
      • Input Impedance:  2 Kilohms
      • Available Gain (Digitally-controlled):  60 dB
      • Phantom Power:  +48V (switchable)
      • Connector Type: XLR Female, pin 2 positive
    • Instrument Input(s) - Channels 1-2:
      • Frequency Response: 20 Hz to 20 kHz, ±0.04 dB
      • Dynamic Range (A–weighted): 116 dB
      • THD + Noise (1 kHz @ -1 dBFS): -87 dB (0.004%)
      • Maximum Input Level: 12.5 dBu
      • Input Impedance: 1 Megohms
      • Available Gain (Digitally-controlled): 60 dB
      • Connector Type: ¼” TS unbalanced
    • Line Input(s) - Channels 1-8:
      • Frequency Response: 20 Hz to 20 kHz, ±0.05 dB
      • Dynamic Range (A–weighted): 116 dB
      • THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
      • Maximum Input Level: 22 dBu
      • Input Impedance: 10 Kilohms
      • Available Gain (Digitally-controlled): 60 dB
      • Connector Type: 1/4” TRS balanced or TS unbalanced
    • Line Output(s) - Channels 1-8:
      • Frequency Response: 20 Hz to 20 kHz, ±0.1 dB
      • Dynamic Range (A–weighted): 119 dB
      • THD + Noise (1 kHz @ -1 dBFS): -111 dB (0.0003%)
      • Maximum Output Level: 20.2 dBu
      • Output Impedance: 100 Ohms
      • Connector Type: 1/4” TRS balanced or TS unbalanced
    • Headphone Output(s) 1-2:
      • Frequency Response: 20 Hz to 20 kHz, ±0.2 dB
      • Dynamic Range (A–weighted): 116 dB
      • THD + Noise (1 kHz @ -1 dBFS into >32Ω): -108 dB (0.0004%)
      • Maximum Output Power into 32Ω: 225 mW
      • Maximum Output Power in 600Ω: 35 mW
      • Connector Type: ¼” TRS stereo unbalanced
    • System Requirements:
      • macOS & Windows:
        • Available USB 2.0 (or higher) port
        • USB cable (included)
        • Intel, AMD, or Apple silicon processor
        • Windows 10 64-bit edition or newer
        • macOS Big Sur 11 or newer
        • Internet connection for software downloads
      • iPad & iPhone: iPadOS / iOS 16 or newer
