    ZOOM LiveTrak L6max Digital Mixer and Recorder

    The Zoom LiveTrak L6max combines the comprehensive features of a full-size mixer with the convenience of a compact, battery-powered recorder. Whether you’re managing a live show, recording a rehearsal, or producing a podcast, this unit is designed to be the reliable centerpiece of your creative workflow.

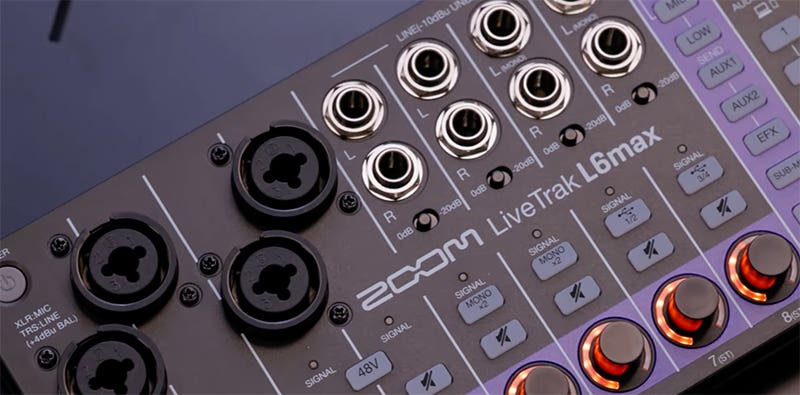

    Zoom LiveTrak L6max Unlock Your Sound

    Unlock Your Sound

    This digital mixer offers a streamlined solution for capturing professional-quality audio. With AI-powered noise reduction and versatile recording options, it’s designed to give you full control over your sound.

    • Versatile 12-Channel Flexibility: Whether you’re performing solo, as a duo, or with a full band, the L6max adapts to your needs. It features four combo inputs (two with Hi-Z) and eight line inputs, providing ample connectivity for microphones, instruments, and line-level devices.
    • Pristine 32-bit Float Recording: Capture audio without the fear of clipping. The 32-bit float technology ensures that even sudden spikes in volume — like loud drum hits or guitar solos — are recorded cleanly. Channels 1-4 feature dual-AD converters to maintain signal integrity across dynamic ranges.
    • Intelligent AI Noise Reduction: Ensure your recordings are clear and professional by utilizing the built-in AI Noise Reduction. This feature intelligently identifies and removes unwanted background hum and hiss while preserving the natural character of your voice and instruments.

    Performance Ready with Easy Usability

    Designed for musicians and creators who need to focus on their performance rather than troubleshooting gear, the L6max offers intuitive controls and robust functionality.

    • Personalized Monitoring for Performers: With dual headphone outputs and a customizable Sub-Out mix, you can tailor monitoring to meet specific needs. This ensures everyone on stage or in the studio hears exactly what they need for optimal performance.
    • Flexible Overdubbing Capabilities: Unlock creative potential by mixing and bouncing tracks to a dedicated channel, freeing up space for more layers. Original files are saved to the SD card, allowing you to undo changes or remix later as needed.
    • High-Visibility OLED Display: Navigate your projects and adjust settings effortlessly, even in low-light environments. The high-contrast OLED display provides clear visual feedback on levels and parameters, keeping you in control at all times.
    Unlock Your Sound This digital mixer offers a streamlined solution for capturing professional-quality audio. With AI-powered noise reduction and versatile recording options, it’s designed to give you full control over your sound. Versatile 12-Channel Flex

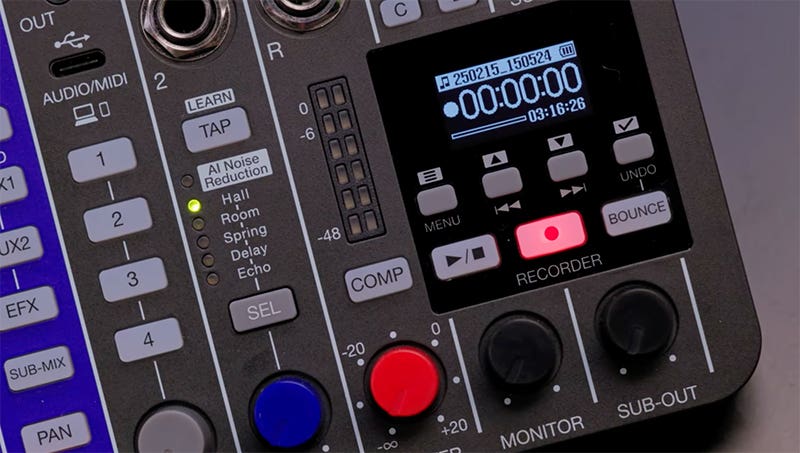

    Zoom LiveTrak L6max Advanced Connections and Seamless Integration

    Advanced Connections and Seamless Integration

    The L6max is not just a standalone mixer; it integrates seamlessly with your existing setup, whether that involves vintage synthesizers, computer-based DAWs, or mobile devices.

    • USB Audio Interface: Functioning as a 32-bit float 12-in / 4-out USB audio interface, the L6max connects easily to your computer, iOS, or Android device. You can record to your preferred DAW while simultaneously capturing a backup to the microSD card.
    • MIDI and Eurorack Compatibility: Expand your sonic palette by connecting external synths and grooveboxes via MIDI I/O. For modular enthusiasts, the L6max can be mounted into a standard Eurorack case with optional rack ears, integrating powerful mixing into your modular setup.
    • High-Output Handling: Channels 5-8 are equipped with a -20 dB PAD, allowing you to connect high-output sources like vintage synthesizers and Eurorack modules directly without the need for external attenuators.

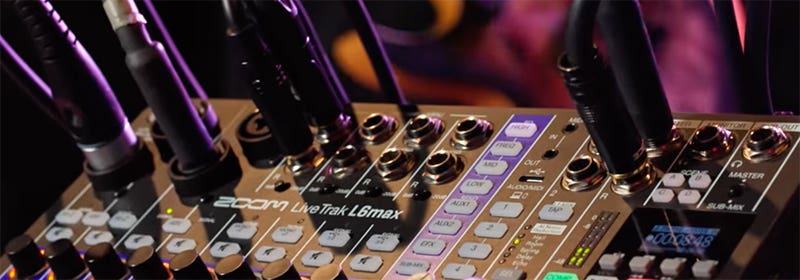

    A Reliable Partner for Your Audio Journey

    The ZOOM LiveTrak L6max offers a sophisticated blend of portability and professional power, ensuring you have the tools necessary to capture your sound exactly as you envision it.

    Zoom LiveTrak L6max A Reliable Partner for Your Audio Journey

    ZOOM LiveTrak L6max Features

    • 32-bit float 12-in / 4-out USB audio interface
    • Capture up to 12 individual tracks plus a stereo mix to SD cards
    • AI Noise Reduction for clean, professional audio
    • 3-Band EQ and onboard effects (Compressor, Reverb, Delay, Echo)
    • Four combo inputs (two with Hi-Z) and eight line inputs
    • Two headphone outputs with customizable Sub-Out
    • Sound Pads with MIDI Sync for triggering samples
    • Battery, USB bus, or mobile battery pack power options
    • Mountable to standard Eurorack cases (with optional adapter)

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    ZOOM LiveTrak L6max Digital Mixer and Recorder Specifications

    ZOOM LiveTrak L6max Digital Mixer and Recorder Specifications
    Product Specifications
    • Number of Input/Output Channels Inputs :
      • MIC/LINE (mono): 4
      • LINE (stereo): 4 Outputs:
      • AUX SEND (mono): 2
      • MASTER (stereo): 1
      • MONITOR (stereo): 1
      • SUB-OUT (stereo): 1
    • MIC/LINE Combo Inputs Connectors: 4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
    • Input Gain: Adjustment unnecessary (dual A/D converter circuits used)
    • Input Impedance:
      • XLR: 3.8 kΩ or more
      • TRS: 18 kΩ or more (when Hi-Z off) / 1 MΩ or more (when Hi-Z on)
    • Maximum Input Level:
      • XLR: +4 dBu
      • TRS: +24 dBu
    • Phantom Power: +48 V (Channel total 20 mA or less)
    • LINE Inputs Connectors: 8 TS phone jacks
    • Input Impedance: 30 kΩ or more
    • Maximum Input Level :
      • +4 dBu (when PAD is 0 dB)
      • +24 dBu (when PAD is -20 dB)
    • AUX SEND Outputs Connectors: 2 TRS phone jacks (impedance balanced)
    • Maximum Output Level: +9.5 dBu
    • Output Impedance: 147 Ω
    • MASTER Outputs Connectors: 2 TRS phone jacks (balanced)
    • Maximum Output Level: +15 dBu
    • Output Impedance: 147 Ω
    • MONITOR / SUB-OUT Outputs Connector: TRS phone jack
    • Maximum Output Level: 50 mW + 50 mW (63 Ω load)
    • Output Impedance: 14.7 Ω
    • Buses:
      • MASTER: 1
      • SUB-MIX: 1
      • AUX SEND: 2
      • SEND EFX: 1
    • Channel Strip EQ:
      • HIGH: 10 kHz, ±15 dB, shelving
      • MID: 100 Hz – 8 kHz, ±15 dB, peaking
      • LOW: 100 Hz, ±15 dB, shelving
    • Level Meters: 6 segments
    • Send Effects: 6 types
    • Recorder Maximum Simultaneous Recording Tracks: 14
    • Maximum Simultaneous Playback Tracks: 14
    • Recording Formats: 48kHz, 32-bit float, mono/stereo WAV
    • Recording Media:
      • microSDHC memory cards (Class 10 or higher)
      • microSDXC memory cards (Class 10 or higher)
    • Audio Interface Numbers of Inputs and Outputs:
      • Input: 14 channels
      • Output: 4 channels
    • Sampling Frequency: 48 kHz
    • Bit Depth: 32-bit float / 24-bit
    • Interface: USB 2.0
    • Card Reader Class: Mass storage class USB 2.0 High Speed
    • Sampling Frequency: 48 kHz
    • Frequency Response: 20 Hz – 20 kHz, −1.0 dB / +0.5 dB
    • Equivalent Input Noise: –120 dBu or less (IHF-A) at 150Ω input
    • Miscellaneous Display: 128×64 OLED
    • Power Supplies:
      • 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
      • AC adapter (ZOOM AD-17): DC 5V/1A
      • USB bus power is supported.
    • Power Consumption: 5W maximum
    • Dimensions (W x D x H): 284 × 114 × 46.5 mm
    • Weight:
      • Unit only: 673 g
      • Including batteries: 767 g
