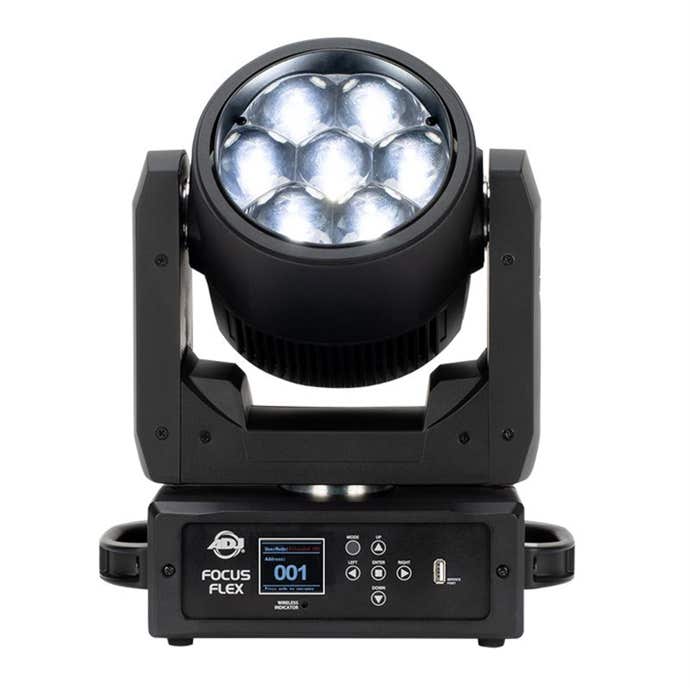

ADJ Focus Flex Effect Light

The ADJ Focus Flex features a Moving Head Pixel Wash Light with Pixel Effects, 7 x 40 Watt RGBW LEDs and DMX Control.

OR

h m s

free-shipping-icon
In Stock!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    Free Extended Warranty

    Free 12 Month Extended Warranty

    You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    Rock Now Pay Later

    0% Interest Payment Plan

    Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    Compact, quick and punchy, the Focus Flex from ADJ Lighting is a versatile moving head luminaire capable of creating wash, beam and pixel effects. Designed to provide lighting designers with both flexibility and creative potential, it is ideal for event production and rental applications as well as for permanent installation in concert halls, theatres, nightclubs and churches.

    ADJ Focus Flex Effect Light Features

    • Moving Head Pixel Wash with Pixel Effects
    • Electronic Strobe / Dimmer
    • Motorized Zoom
    • Color Calibrated Pixels so units match from batch to batch
    • Virtual CMY DMX Control Modes
    • Virtual Foreground and Background Color Wheel Control
    • 0-100% smooth dimming
    • Various strobe speeds
    • USB firmware update port
    • Fan Cooled
    • Antenna for WiFLY EXR Wireless DMX

    The fixture is powered by an array of seven potent 40-Watt 4-in-1 RGBW color mixing LEDs, each of which can be controlled independently. Through mixing the intensity of the primary LED colors, a huge gamut of output colors can be created to suit any mood or desired look. The fixture features a convenient Virtual CMY mode, which allows control alongside native CMY color mixing fixtures using hardware/software CMY color picker/pallete tools. It also offers Virtual Foreground and Background Color Wheel control as well as white light output with variable color temperature of between 2700K to 10,000K. This can be accessed either via linear control or a collection of 10 convenient presets. Meanwhile, through controlling the seven LEDs independently, the fixture can be used to generate impressive pixel-mapped effects. All of the LEDs used to construct the Focus Flex are color calibrated to ensure uniform output of fixtures from different batches.

    Motorized zoom allows the field angle of the Focus Flex to be altered remotely between a wide 57-degrees and narrow 6-degrees, which allows it to be used for creating both broad washes and concise beams. Its extremely quick motor movement allows for the creation of stunning high-impact aerial effects, while 16-bit fine motor control ensures precise positioning.

    A flexible fixture, the Focus Flex offers a range of DMX mode options [7 DMX Modes - 16/25/34/42/50/25 (CMY)/28 (CMY) Channels], appropriate to different applications, as well as a variety of customizable options, including selectable LED refresh rate and dimming modes. These are accessed through a color LCD display panel with 6-button menu interface located on the side panel of the fixture alongside a USB port which can be utilized for easy updates of future firmware releases.



    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    ADJ Focus Flex Effect Light Specifications

    ADJ Focus Flex Effect Light Specifications
    Product Specifications

    ADJ Focus Flex Effect Light Specifications

    • Light Source:
      • 7 x 40-Watt RGBW LEDs (50,000 hr.)
      • CRI: 83
      • CT: 6600K
      • 39,234 lux / 4.4° beam @ 10’
      • 1,008 lux / 34.4° beam @ 10’
    • Pan/Tilt: 540/630 x 265
    • Beam Angle: 4 ~ 35°
    • Field Angle: 6°~57°
    • Selectable LED Refresh Rates: (900 Hz~25K Hz)
    • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
    • 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
    • Colors:
      • Virtual CMY DMX Control Modes
      • Virtual Foreground and Background Color Wheel Control
      • Built-In Color Macros
      • 2700k ~ 10,000 Liner White Color Control
      • Color Temperature Presets: 2700, 3000, 3200, 4000, 4500, 5000, 5600, 6500, 8000 and 10,000K
    • Control:
      • 7 DMX Modes
      • 16/25/34/42/50/25 (CMY)/28 (CMY) Channels
      • Color LCD display with 6-button function menu
      • Control Mode: DMX512 or internal programs
      • Built-In Effect Pixel Programs with Speed and Fade Control
      • Various strobe speeds
      • USB firmware update port
      • With Wired Digital Communication Network
      • RDM (Remote Device Management)
      • WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
    • Pan/Tilt:
      • Pan: 540/630 degrees
      • Tilt: 265 degrees
    • Connections:
      • DMX Connections: 5-pin XLR In/Out
      • Power Connections: Indoor Locking Power In/Out
    • Electrical:
      • Multi-voltage operation: 90-240V, 47/63Hz
      • Max power consumption: 340W @120v
    • Dimensions & Weight:
      • Dimensions (LxWxH): 9.17”L x 6.97”W x 13.8”H (233x177x349mm)
      • Weight: 15.5lbs (7kg)
    • What’s Included:
      • Omega Brackets
      • 1.83M locking power cable
    • Approvals / Rating:
      • ETL Approved / CE Certified
      • IP20
