    Allen & Heath AB168

    The Allen & Heath AB168 offers a straightforward solution for connecting your stage directly to your mixing console. By placing the inputs and outputs right where the performance happens, it eliminates the need for heavy, cumbersome analog snakes. This portable AudioRack integrates seamlessly with Qu and GLD series mixers, delivering professional audio quality in a user-friendly, road-ready package.

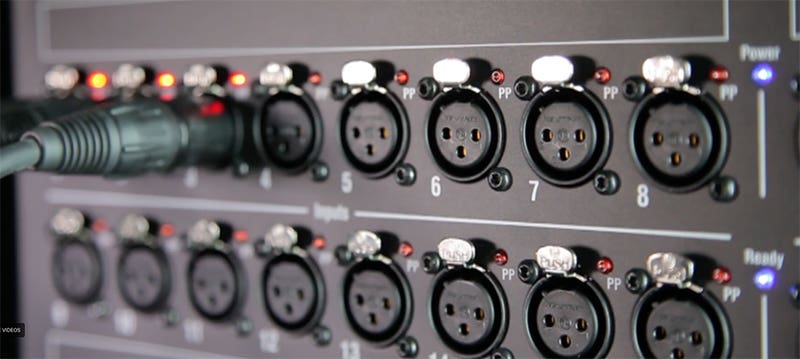

    Allen & Heath AB168 Seamless System Integration

    Seamless System Integration

    The AB168 runs on Allen & Heath’s proprietary dSNAKE protocol, which allows the unit to communicate intelligently with your mixer. This digital connection simplifies the setup process significantly, allowing you to focus on the mix rather than troubleshooting connection issues.

    • Single Cable Connection: A single Cat5 cable carries all audio and control data up to 120m, removing the need for thick, heavy copper multicore cables.
    • Plug-and-Play Operation: The unit automatically synchronizes its firmware with your system the moment it is connected, requiring no manual configuration.
    • System Expansion: A dedicated Expander port allows you to daisy-chain a second AB168 or connect directly to an Allen & Heath ME personal mixing system.

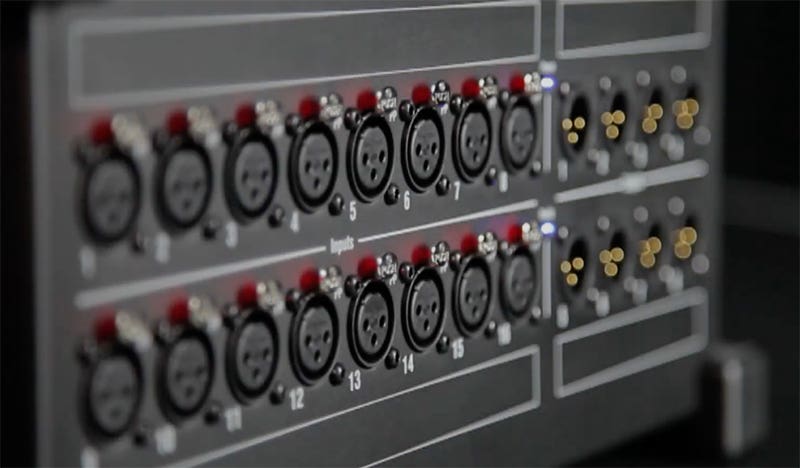

    Plug and Play

    This unit is designed to maintain signal integrity from the source to the console. It provides the same high-quality preamps found on the mixers, ensuring that the sound quality is consistent regardless of how far the stage box is from the Front of House position.

    • 16 Mic Preamps: The unit features 16 remote-controlled preamps that can be adjusted directly from your mixer, keeping the gain stage clean and accessible.
    • 8 XLR Line Outs: Balanced XLR outputs provide clean signal paths for monitor amplifiers, powered wedges, or in-ear monitoring transmitters.
    • Visual Feedback: Each input has a dedicated Phantom Power LED indicator, providing clear confirmation of active channels, even in low-light settings.
    Allen & Heath AB168 Plug and Play

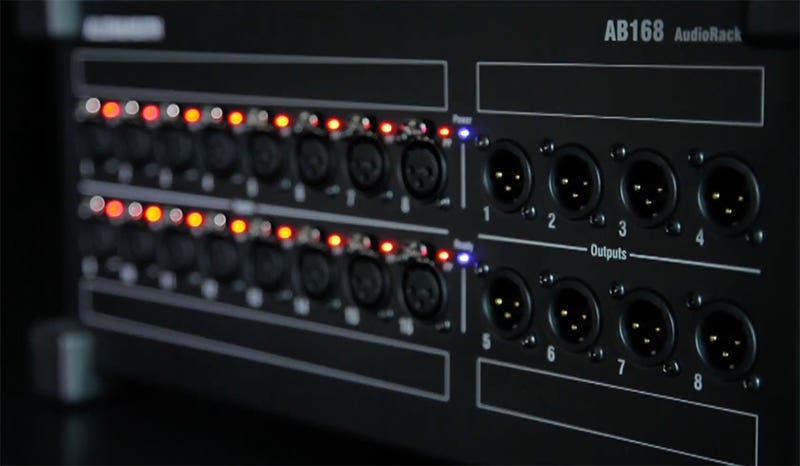

    Allen & Heath AB168 Ready for any Tour

    Ready for any Tour

    Unlike rack-mounted units that require a flight case, the AB168 is built to sit directly on the stage floor. Its physical design prioritizes protection and portability, making it an ideal choice for rental companies, touring bands, and multi-purpose venues.

    • Impact Protection: Hard-wearing rubber bumpers surround the unit, absorbing shock and protecting the chassis during transport and performance.
    • Lightweight Portability: Weighing only 4.8kg and featuring a sturdy integrated carry handle, the unit is easy to carry and position.
    • Flexible Positioning: Place it horizontally or vertically to easily fit into tight spaces on a crowded stage.

    Your New Stage Sidekick

    The Allen & Heath AB168 is a practical extension for any GLD or Qu system. It combines the convenience of digital connectivity with the durability required for live environments. By reducing cable clutter and maintaining high audio standards, it serves as a dependable link between the performer and the engineer.

    Allen & Heath AB168 Your New Stage Sidekick

    Allen & Heath AB168 Features:

    • 16 Mic Preamps on XLR
    • 8 XLR Line Outputs
    • Phantom Power LED per Input
    • Compatible with GLD and Qu series
    • dSNAKE Connection with locking EtherCon port
    • Expander port for daisy-chaining or ME personal mixing system
    • Rubber bumpers for impact resistance
    • Sturdy carry handle
    • Auto-updating firmware
    • Rack mount kit available (optional)

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    Allen And Heath AB-168 16 x 8 Remote Stage Box Specifications

    Allen And Heath AB-168 16 x 8 Remote Stage Box Specifications
    Product SpecificationsAllen And Heath AB-168 16 x 8 Remote Stage Box Specifications
    • XLR Mic/Line Inputs: Balanced
    • XLR Outputs: Balanced, Relay protected
    • Mic/Line Preamp: Fully recallable
    • Output Impedance: <75Ω
    • Input Sensitivity: -60 to +15dBu
    • Nominal Output: +4dBu = 0dB meter reading
    • Analogue Gain: +5 to +60dB, 1dB steps
    • Maximum Output Level: +22dBu
    • Pad: -20dB
    • Residual Output Noise: -91dBu (muted, 20-20kHz)
    • Maximum Input Level: +32dBu
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Operating Temperature: 0 deg C to 35 deg C (32 deg F to 95 deg F)
    • Mic/Line Channel noise: 20-20kHz, Direct Out @ unbalanced out
    • Mic EIN: -127dB with 150? source
    • Mains Power: 100-240V, 50/60 Hz, 20W max
    • Unity gain: (Pad in) -90dBu
    • Low gain: (5dB, Pad out) -93dBu
    • Mid gain: (30dB, Pad out) - 89dBu
    • Mic/Line Channel THD+N: 20-20kHz, Direct Out @ unbalanced out
    • Unity gain: (Pad in) 0.005% -86dBu @ 1kHz, 0dBu output
    • Low gain: (5dB, Pad out) 0.003% -89dBu @ 1kHz, 0dBu output
    • Mid gain: (30dB, Pad out) 0.004% -88dBu @ 1kHz, 0dBu output
