    LD ICOA 18A: Low-End That Moves the Room

    Some speakers can get loud, but real music lives in the bass. The LD ICOA 18A is a powered 18" subwoofer built to make your set hit harder, cleaner, and deeper. With 2400 watts of Class D power, it doesn’t just add boom; it frees up your mains, giving you more headroom and clarity across the entire mix. Whether you’re pushing a band, a DJ rig, or a multimedia event, this LD subwoofer 18A brings the chest-thumping presence that turns sound into an experience.

    Front view of an LD Systems ICOA 18A powered subwoofer featuring a durable black grille and compact, professional design.

    Power and Control for Every Performance

    The LD ICOA 18A gives you both raw power and the control to shape it to the room. Its DSP presets, crossover options, and cardioid mode let you dial in everything from chest-thumping club sound to subtle reinforcement for a conference.

    • 2400W Class D amplifier with 133 dB max SPL
    • 18" bass reflex driver reaching down to 29 Hz.
    • DynX DSP with 4 presets (3 crossover frequencies plus cardioid)
    • Adjustable delay line up to 10 meters for larger setups
    • Switchable polarity for flexible system alignment

    With this kind of versatility, the LD ICOA 18A isn’t just a subwoofer; it’s the foundation that makes your whole mix sound tighter, clearer, and more powerful.

    Rugged Design, Seamless Integration

    The LD subwoofer 18A was built for the road, with a housing tough enough for touring and features that make setup simple. From stacking grooves, every detail is designed to get you in and out of gigs without slowing you down.

    • 18 mm laminated plywood cabinet with protective corners
    • Four ergonomic aluminum handles with rubber grips
    • Stackable design with built-in grooves for stable setups
    • M20 pole mount for flying your mains above the sub
    • Dual combo inputs + XLR outputs for flexible connectivity
    • Dimensions & Weight: 26.5 x 25.1 x 24.6"; 97.7 lbs.

    The ICOA SUB18A is equally at home in clubs, on tour, or in permanent installs: always ready to rumble, never overcomplicated.

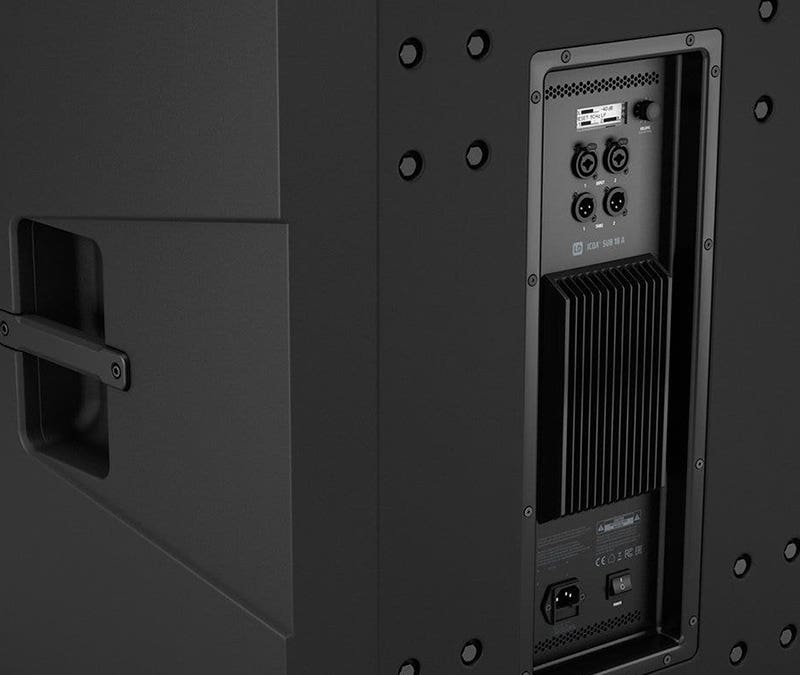

    Rear angled view of an LD Systems ICOA 18A powered subwoofer showing control panel, cooling vents, and side carry handles.

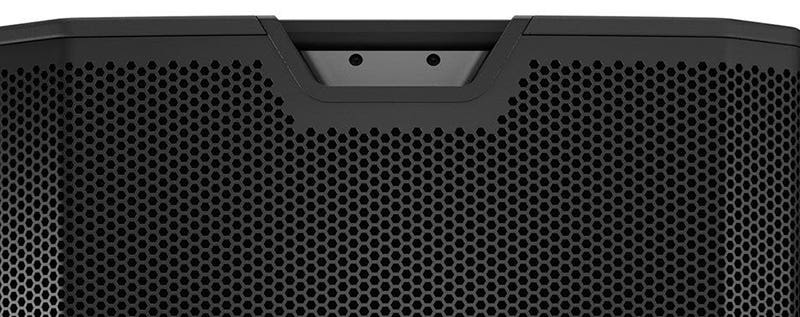

    LD Systems ICOA SUB18A Bring the Thunder

    Bring the Thunder with the LD ICOA 18A

    If your shows need more punch, more depth, and more presence, the LD ICOA 18A is the sub that brings it. Add one to a small system for instant authority, or scale up with multiple subs in cardioid arrays to control the room’s low end. However you run it, it’s the piece of gear that makes your whole system sound pro.

    LD ICOA SUB18A Features:

    • 18" powered subwoofer with bass reflex design
    • Peak power: 2400W | RMS: 600W
    • 133 dB max SPL
    • Frequency response down to 29 Hz
    • DynX DSP with 4 presets (80, 100, 120 Hz crossovers + cardioid)
    • Switchable polarity and delay line up to 10 m
    • 2x XLR/TRS combo inputs, 2x XLR outputs
    • Rugged 18 mm plywood housing with protective corners
    • 4 aluminum handles with rubber grips
    • Integrated transport rollers for easy mobility
    • Stackable with secure grooves
    • M20 threaded pole mount for main speaker placement
    Shop Similar Models

    LD Systems ICOA SUB18A 2400 Watt Powered 18" Bass Reflex PA Subwoofer Specifications

    LD Systems ICOA SUB18A 2400 Watt Powered 18" Bass Reflex PA Subwoofer Specifications
    Product Specifications
    • Type: Powered
    • Low/mid Woofer Dimensions: 18 "
    • Woofer Dimensions: 457.2 mm
    • Woofer Magnet: Ferrite
    • Woofer Brand: Custom-made
    • Woofer Voice Coil: 4” / 100 mm
    • Amplifier: Class D
    • System Power (RMS): 600W
    • Peak Power: 2400W
    • Frequency Response (-10 dB): 29 Hz Preset depending
    • Max. SPL (Peak): 133 dB
    • Protection Circuits: Excursion Limiter, over voltage, over-current, Peak Limiter, thermal overload
    • Controls: Push encoder
    • Indicators: LC display
    • Line Inputs: 2
    • Line Input Connectors: XLR/6.3 mm jack combo jacks (balanced)
    • Line Outputs:
    • Line Output Connectors: XLR
    • Power Supply: 100 - 240V
    • Power Consumption (max.): 675W
    • Operating Temperature: 0 - 40 °C
    • Relative Humidity: < 60% (non-condensing)
    • Cabinet Material: 18 mm Multiplex
    • Cabinet Surface: texture paint
    • Cabinet Construction: Bass Reflex
    • Dimensions (W x H x D): 626 x 672 x 637 mm
    • Weight: 44.3 kg
