    Phenyx Pro PTAU2 Dual-Channel UHF Wireless Mic System

    Easily manage RF settings for lossless audio with the Phenyx Pro PTAU2, a true diversity wireless microphone system designed for simplicity and performance. Perfect for outdoor events, conferences, or weddings, the PTAU2 delivers stable, interference-free sound. Featuring an intuitive shuttle jog dial and advanced anti-interference technology, this system ensures consistently clear and reliable audio in any setting.

    Phenyx Pro PTAU2 Effortless Command at Your Fingertips

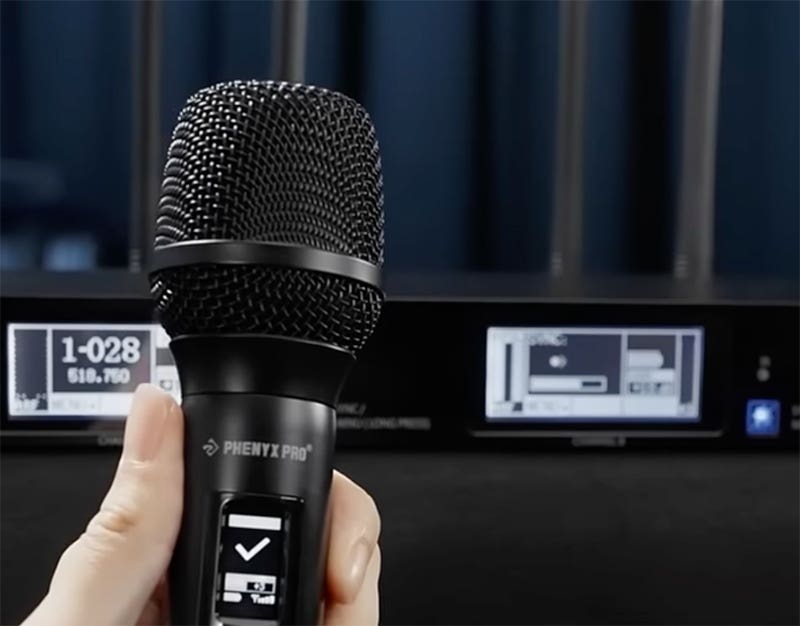

    Effortless Command at Your Fingertips

    The PTAU2 streamlines your workflow with an intuitive interface that keeps you in control without the clutter. Its sleek design integrates powerful functionality directly into a single dial, allowing you to make swift adjustments on the fly so you can focus on the performance, not the tech.

    • Shuttle Jog Dial: Say goodbye to fumbling with tiny buttons and scrolling through endless menus. The innovative shuttle jog dial puts total control at your fingertips. Adjust volume, frequency, and settings with a simple twist — perfect for fast-paced environments where every second counts.
    • Clean Front Panel: By centralizing controls into one hyper-efficient dial, the receiver maintains a sleek, uncluttered look. This user-friendly design flattens the learning curve, so you can set up faster and operate with unshakable confidence.
    • Instant Accessibility: Need to tweak the volume mid-speech or scan for a new channel on the fly? The ultra-responsive control lets you react instantly, keeping you in command of any live event's dynamic needs.

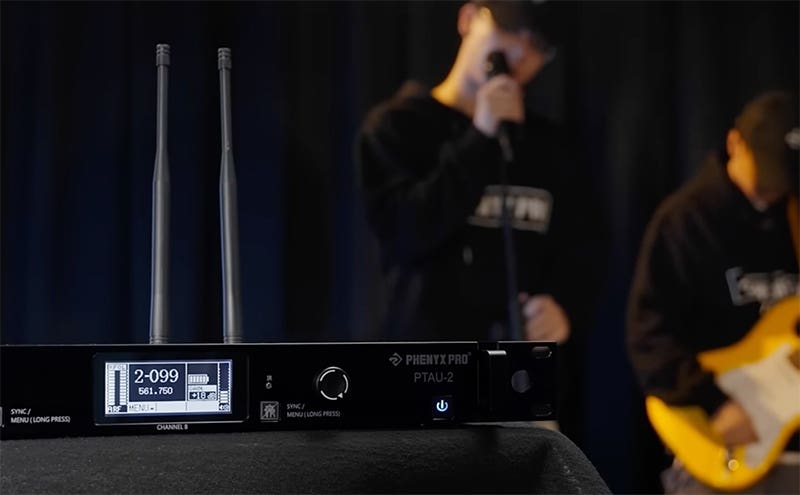

    Stability You Can Trust

    Dropouts and static are a sound engineer's worst nightmare. The PTAU2 puts those fears to rest with rock-solid stability. Its advanced circuitry and smart locking features create a secure audio fortress, ensuring your signal stays crystal clear even when the airwaves are crowded.

    • True Diversity Circuitry: This system actively seeks out the strongest signal by constantly monitoring and selecting between two independent receiver modules. This significantly minimizes the chances of dropouts and dead zones.
    • ID Lock Function: Think of this as a VIP bouncer for your audio. The ID Lock allows only the matched handheld microphone to transmit, effectively blocking interference from other mics on the same frequency and preventing embarrassing crosstalk.
    • UHF 500MHz Band: Operating in the 500MHz range with 2x1000 selectable frequencies provides a massive highway for your audio, ensuring a stable connection that cuts through the noise of modern RF environments.
    Phenyx Pro PTAU2 Stability You Can Trust
    Phenyx Pro PTAU2 Adaptable to Any Environment

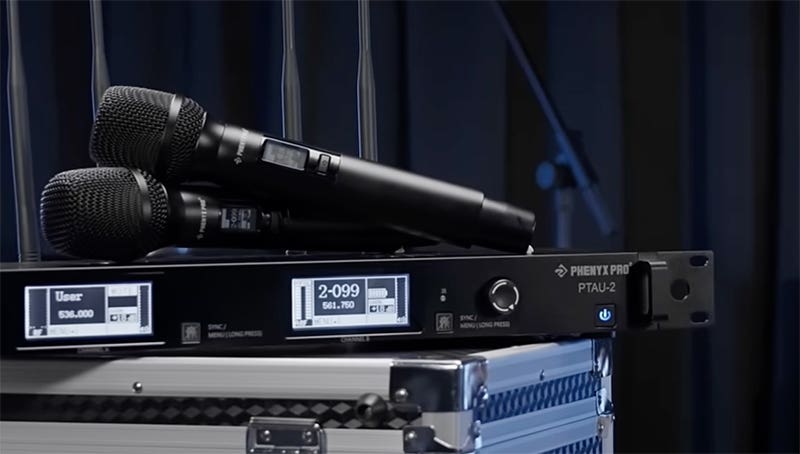

    Adaptable to Any Environment

    No two venues are the same, and the PTAU2 is built to handle them all. Whether you're in a small, intimate room or a sprawling festival ground, this system flexes to meet the specific demands of your space. It offers granular control over power and sensitivity, giving you the tools to optimize performance regardless of the setting.

    • Selectable Transmitter Power: Tailor your signal with 5mW, 10mW, or 30mW options. Crank the power for expansive outdoor stages or dial it back to conserve battery during intimate indoor sessions.
    • Adjustable Receiver Sensitivity: Precision is key. With High, Mid, and Low sensitivity settings, you can fine-tune how the receiver captures your audio, ensuring a perfect pick-up whether the environment is pin-drop quiet or absolute chaos.
    • Smart Spectrum Analyzer: Stop guessing and start knowing. The built-in analyzer scans the local RF landscape to pinpoint clean frequency bands, allowing you to dodge interference from nearby wireless systems with ease.

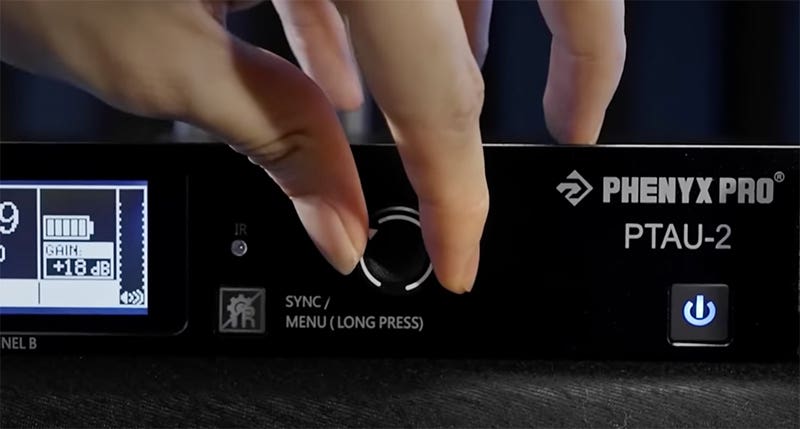

    Engineered for Pure Excellence

    The Phenyx Pro PTAU2 proves its adaptability across diverse scenarios, from high-energy band performances to critical corporate presentations. It combines intuitive operation with powerful performance, ensuring every word and note is delivered with the clarity and confidence your audience deserves.

    Phenyx Pro PTAU2 Engineered for Pure Excellence

    Phenyx Pro PTAU2 Features

    • Innovative Shuttle Jog Dial for single-knob control of all functions.
    • True Diversity Circuitry minimizes signal loss and dropouts.
    • ID Lock Function prevents interference from other microphones.
    • Selectable Transmitter Power (5mW/10mW/30mW) for versatile range management.
    • Spectrum Analyzer and Auto-Scan for identifying clean frequencies.
    • Adjustable Receiver Sensitivity (High/Mid/Low) for optimized signal pickup.
    • 2x1000 selectable frequencies in the UHF 500MHz band.
    • Dynamic microphone capsule tuned for rich, bright vocal reproduction.
    • Multi-set operation supports up to 4 systems simultaneously.
    • Sturdy construction designed for rigorous live use.
    Shop Similar Models

    Phenyx Pro PTAU2 Dual-Channel UHF Handheld Wireless Microphone System Specifications

    Phenyx Pro PTAU2 Dual-Channel UHF Handheld Wireless Microphone System Specifications
    Product Specifications
    • System Frequency Range: 512-562 MHz
    • System Modulation Mode: FM
    • System Available Bandwidth: 25 kHz per channel
    • System Number of Frequencies: 2 x 1000
    • System Frequency Stability: ± 0.005%
    • System Dynamic Range: >110 dB
    • System Peak Deviation: ± 45 kHz
    • System Frequency Response: 60 Hz-18 kHz (±3 dB)
    • System S/N Ratio: >105 dB
    • System Total Harmonic Distortion: <0.5%
    • Receiver IF Frequency: 110 MHz (1st), 10.7 MHz (2nd)
    • Receiver Antenna Connector: BNC
    • Receiver Sensitivity: 12 dBµV (80 dBS/N)
    • Receiver Quieting Sensitivity: -40 dB
    • Receiver Image Rejection: >80 dB
    • Receiver Output Level: Unbalanced: +4 dB (1.25 V)/5 kO ; Balanced: +10 dB (2.5 V)/600 O
    • Receiver Power Requirement: DC: 11-16 V (rated 12 V), Current: <200 mA (single receiver), <350 mA (dual receiver)
    • Transmitter Output Power: 5 - 30mW (depends on specific setting)
    • Transmitter Current Consumption: <110 mA (HF), <80 mA (LF)
    • Transmitter Battery Life: =8 hours (AA alkaline battery)
    • Channel 1 Frequency List: 512-536 MHz / Each channel has 1000 frequencies with 0.025 MHz increment.
    • Channel 2 Frequency List: 537-562 MHz / Each channel has 1000 frequencies with 0.025 MHz increment.
