PreSonus StudioLive Series III SE 16 Digital Mixer

The PreSonus StudioLive Series III SE 16 is a 40-channel beast elegantly disguised in a compact, rack-mountable frame. This digital mixer is your ticket to large-format mixing power without needing a large-format space. It delivers studio-quality sound and extensive routing flexibility, whether you're mixing a live show, tracking an album, or producing a broadcast.

Powerful Processing for Every Channel

Ready to take control of your mix like never before? The StudioLive SE 16 packs immense power and intuitive workflow into a portable chassis, giving you the tools to craft professional sound with speed and precision.

Massive Channel Count, Compact Footprint: Command a full 40-channel mix from a sleek 17-fader surface. It’s perfect for venues and mobile rigs where space is a premium, but sonic quality is non-negotiable.
Studio-Grade XMAX-R Preamps: The 16 fully recallable, studio-grade XMAX-R preamps capture every nuance of your sound with pristine clarity and warmth, ensuring your mix starts with the best possible source audio.
Onboard Multitrack Recording: Record your show or rehearsal directly to an SD card with the integrated 34x34 multitrack recorder. It’s perfect for capturing live performances for later mixing or for conducting a virtual soundcheck without needing the band present.
Massive USB Audio Interface: The built-in 64x64 USB audio interface allows for seamless integration with your studio DAW. You can use it for multitrack recording, playing back backing tracks, and connecting to your favorite plug-ins.

Flexible Routing and Powerful Processing

The StudioLive SE 16 isn’t just about inputs and outputs; it’s about giving you the freedom to route anything anywhere. This mixer adapts to your workflow, not the other way around.

16 Flexible FlexMixes: This is where the magic happens. Configure any of the 16 FlexMixes as an aux mix for monitors, a subgroup for processing, or a matrix mix for sending audio to different zones. This incredible flexibility lets you tailor the mixer’s architecture to the specific needs of any gig.
Vintage-Style Processing on Every Channel: Each input and bus features its own Fat Channel with vintage-style EQ and compression options. You get the tactile feel of analog gear with the convenience and recallability of digital, allowing you to dial in your sound quickly and effectively.
Comprehensive Bus and Grouping Options: Stay organized even with complex mixes. The StudioLive SE 16 provides 24 DCA groups for easy fader control, 4 dedicated subgroup mixes for processing related channels, and 4 dedicated FX mixes with lush reverbs and delays to add depth to your sound.

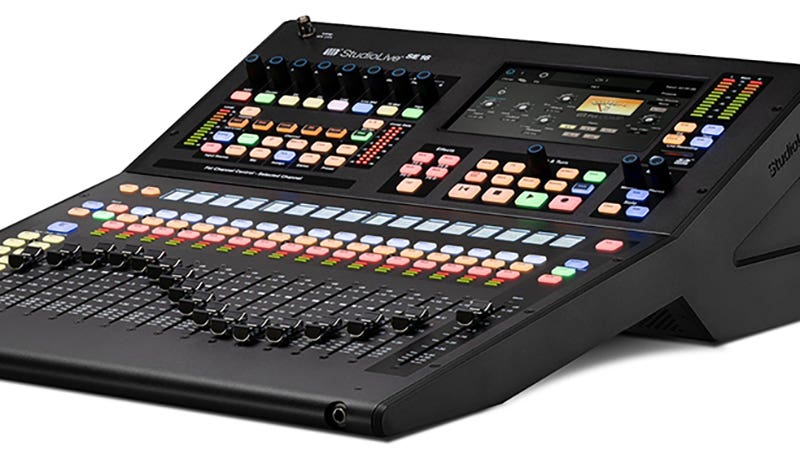

PreSonus StudioLive Series III SE 16 Flexible Routing and Powerful Processing

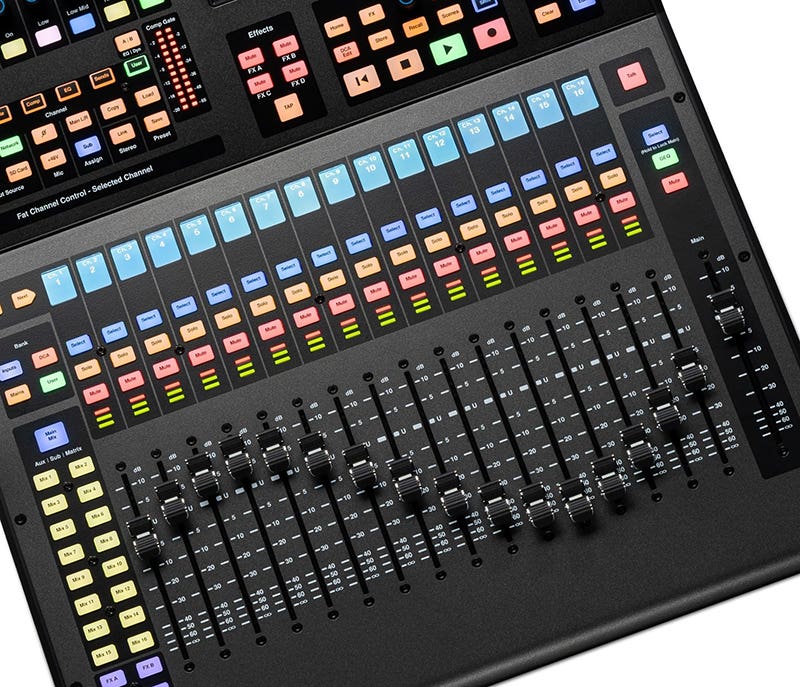

A Complete Hardware and Software Ecosystem

More than just a mixer, the StudioLive SE 16 is the heart of a fully integrated audio ecosystem that extends your control far beyond the console itself.

Integrated Software Suite: Your mixer comes with a powerful software package, including Capture for multitrack recording, Universal Control for remote mixing from a computer or tablet, and a perpetual license for Studio One Pro — a complete professional DAW.
Remote Control from Anywhere: Use Universal Control to adjust your mix wirelessly from anywhere in the venue. You can even use PreSonus Metro to control the mixer over the internet with real-time audio monitoring, giving you ultimate freedom.
AVB Audio Networking: Built-in, Milan-certified AVB networking makes it easy to expand your system. Connect to PreSonus stage boxes, personal monitor mixers, and other AVB-enabled devices with a single Ethernet cable for a clean and scalable setup.

The Ultimate Mixer for… Anything!

The PreSonus StudioLive SE 16 digital mixer is the ultimate solution for engineers who need large-scale mixing capabilities in a portable and powerful package. It delivers the sound quality, flexibility, and control you need to handle any production with confidence.

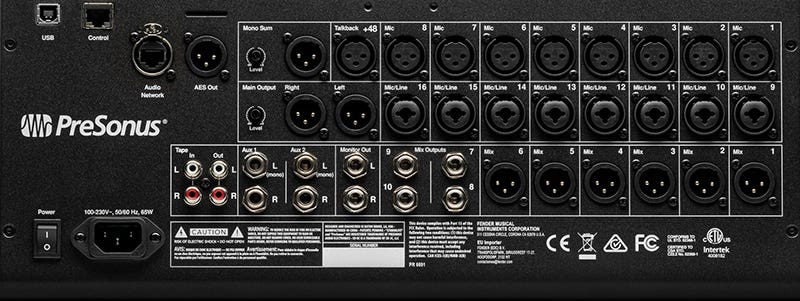

PreSonus StudioLive Series III SE 16 The Ultimate Mixer

PreSonus StudioLive Series III SE 16 Digital Mixer Features:

40-channel digital mixer with 17 motorized faders
16 studio-grade, recallable XMAX-R microphone preamps
16 FlexMixes configurable as aux, subgroup, or matrix mixes
Vintage-style EQ and compression options on every input and bus
Onboard 34x34 multitrack SD card recorder for live recording and virtual soundcheck
Integrated 64x64 USB 2.0 audio interface for studio and live use
Built-in AVB audio networking for system expansion
Comprehensive software suite including Capture, Universal Control, and Studio One Pro
24 DCA groups, 4 dedicated subgroups, and 4 dedicated FX buses

See all items from PRESONUS

Shop Similar Models

Live Sound Digital Mixers

About the Manufacturer

Phone: 225-216-7887

Warranty: 2 Years on All Recording Products, Studio monitors, & StudioLive ARC Mixers; 3 Years on StudioLive Series III Rack and Console Mixers; 6 Years on AIR, & CDL Loudspeakers

Specifications

PreSonus StudioLive Series III SE 16 Digital Mixer Specifications

PreSonus StudioLive Series III SE 16 Digital Mixer Specifications
Product Specifications	Microphone Preamplifier: Type: 16 XLR Female, balanced (Combo connectors) Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu Input Impedance: 1 kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB Gain Control Range (±1 dB): 0 dB to +60 dB Maximum Input Level (unity gain): +12 dBu Phantom Power (±2 VDC): 48 VDC, switchable per channel Line Inputs: Type: (8) 1/4" TRS Female, balanced (Combo connectors) Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu Input Impedance: 10 kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB Maximum Input Level: +18 dBu Tape Inputs: Type: RCA Female, unbalanced (stereo pair) Maximum Input Level: +12 dBu, ±0.5 dBu FlexMix Outputs: Type: 12 (6 XLRM, 4 ¼" TRS, balanced) Maximum Output Level: +24 dBu, ±0.5 dBu Output Impedance: 100Ω Main Outputs: Type: 3 XLR Male, balanced (Stereo Left/Right, Main Mono/Center) Maximum Output Level: +24 dBu, ±0.5 dBu Output Impedance: 100Ω Monitor Outputs: Type: 1/4” TRS Female, balanced (stereo pair) Maximum Output Level: +18 dBu, ±0.5 dBu Output Impedance: 100Ω Tape Outputs: Type: RCA Female, unbalanced (stereo pair) Maximum Output Level: +18 dBu, ±0.5 dBu Output Impedance: 100Ω Headphone Output: Type: 1/4" TRS Female, active stereo Maximum Output: 100 mW/ch. @ 60Ω load Frequency Response: 20 Hz – 20 kHz (± 0.5 dB) THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd System Crosstalk: Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) Digital Audio and Control: ADC Dynamic Range: 115 dB (A-wtd, 48 kHz) DAC Dynamic Range: 115 dB (A-wtd, 48 kHz) USB Recording Port: USB 2.0, Type-B AES/EBU Output: XLR Male Network Control Port: RJ-45 AVB Audio Network Port: Locking XLR Ethernet Internal Processing: 32-bit, floating point DSP Engine: Quad-core FLEX DSP Sampling Rate: 44.1 and 48 kHz A/D/A Bit Depth: 24 Reference Level for 0 dBFS: +18 dBu Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active) Jitter: <20 ps RMS (20 Hz - 20 kHz) Jitter Attenuation: >60 dB (1 ns in, 1 ps out) Jitter Attenuation: >60 dB (1 ns in, 1 ps out) Power / Environmental: Connector: IEC Input-Voltage Range: 90 to 230 VAC (±10%) Power Requirements (continuous): 85W Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit Dimensions (H x W x D): 6.51" x 17.59" x 22.97" / 165.36 x 446.66 x 583.48 mm Weight: 23.15 lbs / 10.5 kg
