RCF NXL24a MK2 2100 Watt Line Array Column Speaker

The NXL 24-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies.

OR

h m s

free-shipping-icon
In Stock!
Remove one item Add one item

Compare

Compare! Here are all the serial numbers of this model we have in stock. Compare them all and select your favorite!

    2 Day Shipping Icon

    Fast & Free Shipping

    Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

    Free Extended Warranty

    Free 12 Month Extended Warranty

    You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.

    45 Day return

    Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

    Canadian Shipping Information

    Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

    Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

    NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

    Rock Now Pay Later

    0% Interest Payment Plan

    Don’t sell your soul to a creditor to get the gear you need. At AMS, we want to lower the barriers to create. That’s why we offer in-house 0% financing, and you don’t even have to open a new line of credit! Spread out payments on your credit card to simplify financing and avoid hefty late fees or service charges. Cost shouldn’t interfere with your creativity.

    AMS Agent

    Have questions?
    Talk to a sales specialist!

    800-319-9043

    RCF NXL24a MK2 2100-Watt Line Array Column Speaker

    The RCF NXL24a MK2 is built from the ground up to deliver serious sound for bands, DJs, clubs, and rental companies who need audio that cuts through the mix and fills every corner of the room. This powerhouse combines premium RCF transducers and a muscular 2100W two-channel amplifier to pump out crystal-clear audio at up to 132 dB.

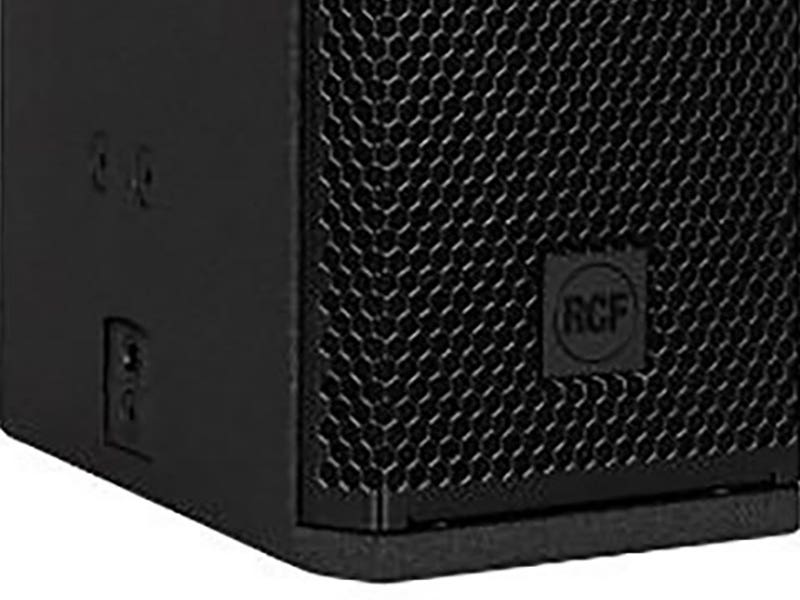

    RCF NXL24a MK2 Advanced Features for Unmatched Performance

    Advanced Features for Unmatched Performance

    Here's what makes the NXL24a MK2 a standout performer in any audio setup:

    • Massive 2100W Class-D Amplifier: This beast packs serious punch without the bulk. The efficient Class-D design delivers clean, powerful amplification that keeps your sound crisp even when you're pushing volumes that make the crowd feel every beat.
    • Smart 100° x 30° Coverage Pattern: The asymmetrical waveguide design means you get wide, even coverage without dead spots or harsh reflections. Your audience gets consistent sound whether they're front and center or off to the side.
    • Four 6" Neodymium Woofers + 3" Compression Driver: This two-way setup gives you tight, punchy lows from the quad woofer array while the titanium compression driver handles crisp highs and smooth mids. It's like having a full-range system in one sleek column.

    Built for Real-World Performance

    The NXL24a MK2 doesn't just sound good — it's engineered to handle whatever you throw at it, night after night.

    • Extended 60Hz-20kHz Frequency Range: You get deep bass extension down to 60Hz without needing a separate subwoofer for smaller gigs, though it pairs beautifully with subs when you need that extra low-end thump for larger venues.
    • RCF's FiRPHASE and Bass Motion Control DSP: These aren't just fancy tech terms — they're the secret sauce that keeps your sound tight and controlled. FiRPHASE eliminates phase issues between drivers, while Bass Motion Control prevents woofer over-excursion, so you get clean bass even at high volumes.
    • Flexible Installation Options: Use it as a standalone unit, fly it from rigging points, or couple multiple units for extended coverage. The four M8 rigging points and Quick Lock system make setup fast and secure.

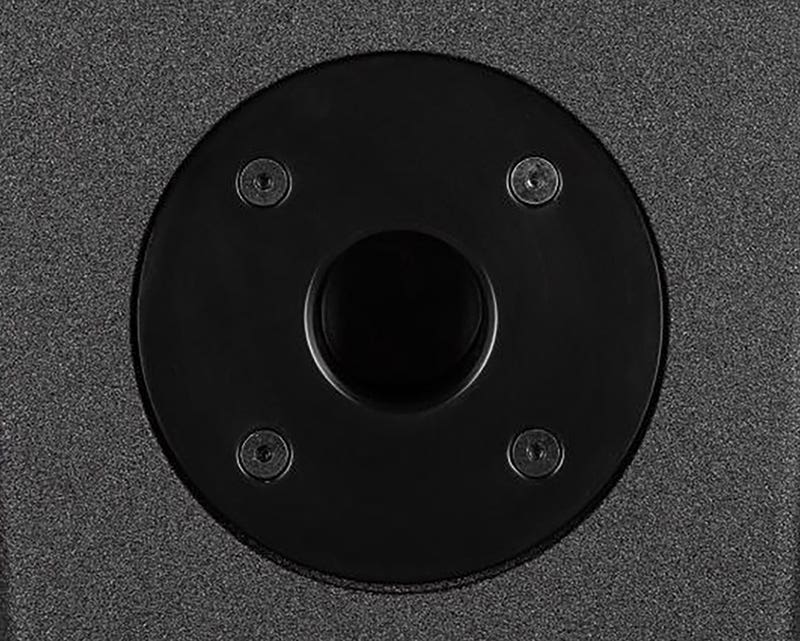

    RCF NXL24a MK2 Built for Real-World Performance

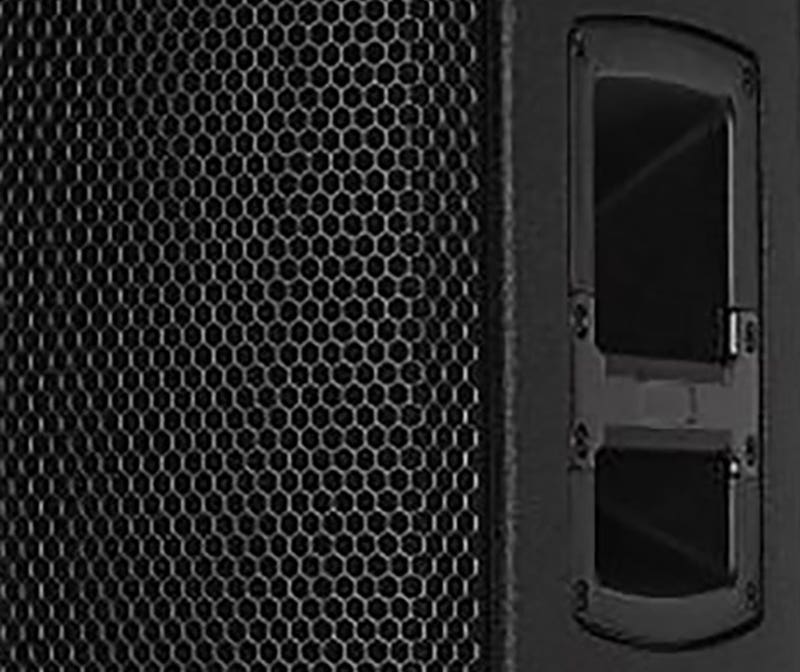

    RCF NXL24a MK2 Tour-Ready Construction That Goes the Distance

    Tour-Ready Construction That Goes the Distance

    This speaker is built like a tank but carries like it's not trying to break your back.

    • Baltic Birch Plywood Cabinet: The rugged construction can handle the bumps and bruises of constant transport while the premium wood adds to the overall sonic quality. It's tough enough for the road but refined enough for permanent installations.
    • Integrated Rigging Hardware: Four M8 rigging points are built right into the cabinet, so you're not fumbling with separate mounting hardware. The Quick Lock system makes connections fast and foolproof.
    • Ready-to-Go Connectivity: Comes with a Powercon True 1 to Edison cable, so you can plug in and start playing without hunting down adapters.

    Pro Sound Made Simple

    The RCF NXL24a MK2 delivers the kind of audio performance that separates the pros from the wannabes. Whether you're running sound for a packed club, supporting a touring act, or need reliable rental inventory that consistently delivers, this speaker gives you the power, clarity, and flexibility to make every gig sound its best.

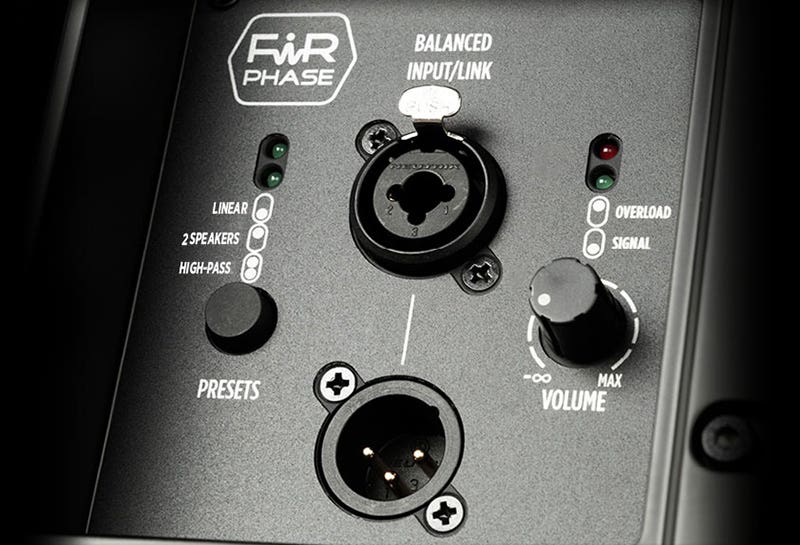

    RCF NXL24a MK2 Pro Sound Made Simple

    RCF NXL24a MK2 Features:

    • Up to 132 dB maximum sound pressure level
    • 2100W Class-D amplifier with efficient power delivery
    • 100° x 30° constant directivity coverage angle
    • 3" titanium neodymium compression driver
    • Four 6" high-power neodymium woofers
    • 60Hz-20kHz linear frequency response
    • Bass Motion Control and FiRPHASE DSP processing
    • Four M8 rigging points with Quick Lock system
    • Tour-ready baltic birch plywood construction
    • Includes Powercon True 1 to Edison cable
    Shop Similar Models

    RCF NXL24a MK2 2100 Watt Line Array Column Speaker Specifications

    RCF NXL24a MK2 2100 Watt Line Array Column Speaker Specifications
    Product Specifications

    RCF NXL24a MK2 2100 Watt Line Array Column Speaker Specifications:

    • Frequency Response: 60 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 132 dB
    • Horizontal Coverage Angle: 100°
    • Vertical Coverage Angle: 30°
    • Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
    • Woofer: 4 x 6.0'' neo, 1.5'' v.c
    • Input Signal: bal/unbal
    • Input Connectors: Combo XLR/Jack
    • Output Connectors: XLR
    • Input Sensitivity: +4 dBu
    • Crossover Frequencies: 800
    • Protections: Thermal, Excurs., RMS
    • Limiter: Soft Limiter
    • Controls: Linear, 2 Speakers, High-Pass, Volume
    • Total Power: 2100W Peak
    • High Frequencies: 700W Peak
    • Low Frequencies: 1400W Peak
    • Cooling: Convection
    • Connections: Powercon IN/OUT
    • CE Marking: Yes
    • Cabinet/Case Material: Baltic birch plywood
    • Hardware: 4 x M8, 4 x quick lock
    • Handles: 2 side
    • Pole Mount/Cap: Yes
    • Grille: Steel
    • Color: Black
    • Dimensions (H x W x D): 41.57" x 7.91" x 10.79" / 1056 x 201 x 274 mm
    • Weight: 24.4 kg / 53.79 lbs
