RME Fireface UFX III USB Audio Interface

The Fireface UFX III is a powerful multitrack interface with 94 channel I O DURec direct USB recording low latency performance and unmatched flexibility for any studio setup.

$3,199.00 $3,499.00

Fast & Free Shipping

Free 12 Month Extended Warranty

45 Day return

Item can Ship to Canada

Fast & Free Shipping

Did you know AMS is the only music distributor with four distribution centers? And that means we can offer super-fast shipping on all your music products. Whether you don’t want the spark of inspiration to fade or you really need that replacement speaker before the next show, we have you covered anywhere in the U.S. And even better, it’s FREE!

Full Details

Free 12 Month Extended Warranty

You shouldn’t have to pay extra for a little peace of mind. When you purchase from AMS, you’ll get a free 12-month extended warranty to cover your purchase — and that’s in addition to any manufacturer’s warranties! Thousands of items in our catalog feature the “Gold Lock Extended Warranty,” so you can feel confident in your purchase.

45 Day return

Sometimes the gear on the computer screen seems like a better fit than when you actually get your hands on it. We understand, and that’s why AMS offers an industry-leading 45-day money-back guarantee. If you’re not happy with an item, you have a full month and a half to send it back! We don’t want to just sell you gear. We want to sell you the RIGHT gear — even if it takes a few tries.

Canadian Shipping Information

Welcome Canadian musicians! Buying your gear from AMS is as easy as going to a local music store, with more selection and more than competitive prices!

Items with this logo are eligible to ship to Canada. Please note that you will be responsible for payment of brokerage fees, duties and other import taxes applicable to your order.

NOTE: Free shipping offers do not apply to Canadian orders. Please be aware of custom fees - such as taxes and duties - when your order arrives. Since these fees vary from location to location, CUSTOMS FEES ARE NOT INCLUDED IN SHIPPING CHARGES. Please check with your local customs office for more information on the fees in your areas. Refusal to pay these fees will result in an undeliverable order. If returned, we do not refund shipping charges and may assess restocking fees to cover return shipping expenses.

Have questions?
Talk to a sales specialist!

800-319-9043

Found for less

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

RME Fireface UFX III USB Audio Interface

$3,199.00

Pig Hog 8mm Guitar Instrument Cable 10 Feet

$25.95

On Stage CTA6600 Velcro Cable Ties 5 Pack Black

$7.95

$3,232.90

RME Fireface UFX III USB Audio Interface

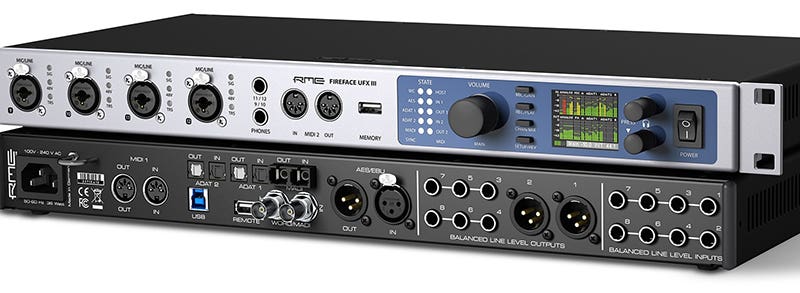

The RME Fireface UFX III is the high-performance command center you've been waiting for. This flagship interface is engineered to be the unwavering heart of any professional multitrack studio, effortlessly managing up to 94 channels of I/O. It combines unparalleled flexibility, rock-solid compatibility, and RME’s legendary low-latency performance to ensure your sessions run flawlessly, no matter the application.

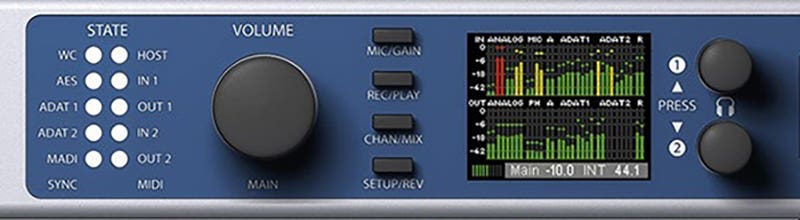

Unlocking Your Studio's Full Potential

The Fireface UFX III is more than just an interface; it's a creative enabler designed for professionals who demand the best. Whether you're tracking a full band, mixing a complex film score, or mastering an album, this powerhouse delivers pristine audio and total control, letting you focus on what truly matters: the music.

Pristine Audio Conversion & Analog Performance: The UFX III is built on newly designed analog and digital boards. This means you get next-generation AD/DA converters with improved THD+N values for ultra-clean recordings, plus DC-coupled outputs perfect for sending control voltages to your favorite modular synths.

SteadyClock FS Technology: RME's industry-leading clocking technology provides femtosecond-level jitter rejection, guaranteeing incredible sonic detail and a stable, stereo image. Your audio has never sounded so clear and transparent.

Powerful Onboard DSP: With a powerhouse DSP chip under the hood, you get access to the TotalMix FX mixer, which includes EQ, dynamics, reverb, and delay on every channel — all with zero latency. Create complex monitor mixes for musicians without ever taxing your computer's CPU.

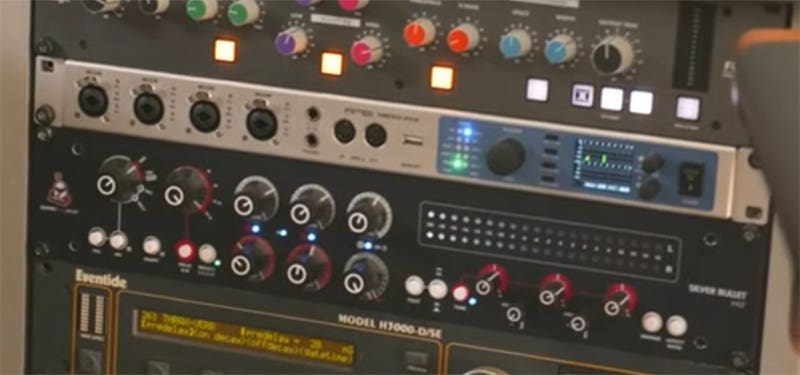

Unmatched Connectivity and Flexibility

The Fireface UFX III isn't just about raw power; it’s about providing a seamless, integrated workflow that adapts to your needs. Its expansive I/O and routing capabilities mean you can finally connect all your outboard gear, digital sources, and monitoring systems without compromise.

Comprehensive MADI I/O: With 64 channels of MADI on board, the UFX III opens the door to a world of professional digital and analog I/O solutions. Easily expand your channel count by connecting external converters or route audio between multiple MADI-equipped devices in series.

Full USB 3.0 Performance (Class Compliant Ready): Finally, an interface that doesn’t cut corners. The UFX III delivers all 94 channels of I/O over USB 3.0, even in Class Compliant mode. This means you can get full, driverless operation on Mac, Linux, and even an iPad Pro with USB-C.

DURec (Direct USB Recording): Record up to 80 channels directly to a connected USB thumb drive or hard drive via the front-panel port. This DSP-powered feature lets you capture live shows, rehearsals, or jam sessions reliably, even without a computer.

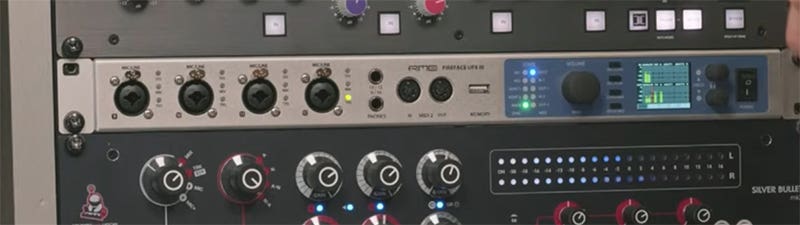

Your Workflow, Your Way

The beauty of the UFX III lies in how it molds to your studio, not the other way around. Every feature is designed to solve real-world problems and speed up your creative process, giving you complete command over your audio environment.

TotalMix FX & TotalMix Remote: This isn't just a control panel; it’s a complete virtual mixing console. Route any input to any output, create multiple latency-free headphone mixes, and control it all from your computer or remotely from an iPad via Wi-Fi. It’s like having a large-format console at your fingertips.

ARC USB Remote Control (Optional): Get hands-on control over TotalMix FX with the optional ARC USB. This plug-and-play remote features 15 assignable buttons, an encoder wheel, and a footswitch jack, letting you manage your monitor mixes and session functions without touching the mouse.

DC-Coupled Outputs for Synthesizer Control: All of the UFX III’s line-level analog outputs are fully DC-coupled. This allows you to send control voltages (CV) and gate signals directly from your DAW to modular synthesizers, bringing your hardware and software worlds together seamlessly.

RME Fireface UFX III Features:

94 Input / 94 Output channels

RME's high-precision SteadyClock FS technology

Comprehensive MADI connectivity with 64 channels of I/O

DURec: Direct USB Recording of up to 80 channels

Full USB 3.0 support with Class Compliant mode for driverless operation

TotalMix FX DSP mixer with EQ, Dynamics, Reverb, and Delay on all channels

4 high-performance Mic/Instrument/Line preamps on XLR/TRS combo jacks

8 balanced line-level analog outputs, including XLR stereo monitor outs

2 stereo headphone outputs with high-power amps

DC-Coupled outputs for sending CV/Gate information to modular synthesizers

Support for the optional ARC USB remote control

RME Fireface UFX III USB Audio Interface Specifications

RME Fireface UFX III USB Audio Interface Specifications
Product Specifications	Analog: AD, Line In 1-8, rear Input: 6.3 mm TRS, electronically balanced Signal to Noise ratio (SNR) @ LoGain: 116 dB (AES17), 118 dBA Signal to Noise ratio (SNR) @ +4 dBu: 115 dB (AES17), 117 dBA Frequency response @ 44.1 kHz, -0.1 dB: 8.9 Hz – 20.4 kHz Frequency response @ 96 kHz, -0.5 dB: 4.3 Hz – 45.2 kHz Frequency response @ 192 kHz, -1 dB: 3 Hz – 89 kHz Filter: Short Delay Sharp, 5 / 5 / 6 samples delay THD @ -1 dBFS: < -120 dB, < 0.0001 % THD+N @ -1 dBFS: < -110 dB, < 0.00032 % Channel separation: > 110 dB Maximum input level: +19 dBu Input: 6.3 mm TRS jack, electronically balanced Input impedance @ 1 kHz: 10 kOhm unbalanced, 10.6 kOhm balanced Input sensitivity switchable between Lo Gain and +4 dBu Input level for 0 dBFS @ Lo Gain: +19 dBu Input level for 0 dBFS @ +4 dBu: +13 dBu Variable digital gain: 0 to +12 dB Minimum level for 0 dBFS: +1 dBu, -1.2 dBV Microphone In 9-12, Front: As AD, but: Input: XLR, electronically balanced Input impedance @ 1 kHz: 3.4 kOhm Signal to Noise ratio (SNR) @ 0 dB Gain: 117 dB (AES17), 119.5 dBA THD+N @ -1 dBFS, Gain 20 dB: < -110 dB, < 0.00032 % Frequency response @ 44.1 kHz, -0.1 dB: 10.7 Hz – 20.3 kHz Frequency response @ 96 kHz, -0.5 dB: 5.1 Hz – 45.0 kHz Frequency response @ 192 kHz, -1 dB: 3.5 Hz – 88 kHz EIN @ 60 dB Gain, 150 Ohm, A-Weighted: -129.8 dBu Gain range: 75 dB Maximum input level, Gain 0 dB: +18 dBu Maximum input level, Gain 75 dB: -57 dBu CLIP LED: 0 dBFS SIG LED: -60 dBFS Instrument In 9-12, Front: As AD, but: Input: 6.3 mm TS jack, unbalanced Input impedance @ 1 kHz: 1 MOhm Signal to Noise ratio (SNR): 116 dB (AES17), 118.5 dBA Frequency response @ 44.1 kHz, -0.5 dB: 2.4 Hz – 20.0 kHz Frequency response @ 96 kHz, -1 dB: 1.6 Hz – 28 kHz Frequency response @ 192 kHz, -3 dB: 0.8 Hz – 54 kHz THD+N @ -1 dBFS, Gain 20 dB: < -107 dB, < 0.00045 % Gain range: 42 dB Maximum input level, Gain 8 dB: +21 dBu Maximum input level, Gain 50 dB: -21 dBu DA, Line Out 3-8, Rear: Output: 6.3 mm TRS jack, servo-balanced Signal to Noise ratio (SNR) @ HiGain: 116.5 dB (AES17), 118.5 dBA Signal to Noise ratio (SNR) @ +4 dBu: 116 dB (AES17), 118 dBA Signal to Noise ratio (SNR) @ -10 dBV: 107 dB (AES17), 109 dBA Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.6 kHz Frequency response @ 192 kHz, -1 dB: 0 Hz – 77.5 kHz THD+N: < -110 dB, < 0.00032 % Channel separation: > 110 dB Output level switchable Hi Gain, +4 dBu, -10 dBV Output level @ 0 dBFS @ Hi Gain: +19 dBu Output level @ 0 dBFS @ +4 dBu: +13 dBu Output level @ 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu) Output impedance: 75 Ohm DA - Stereo Monitor Output XLR (1-2): As DA, but: Output: XLR, balanced Output level switchable 24 dBu, Hi Gain, +4 dBu, -10 dBV Output level @ 0 dBFS @ 24 dBu: +24 dBu Output level @ 0 dBFS @ Hi Gain: +19 dBu Output level @ 0 dBFS @ +4 dBu: +13 dBu Output level @ 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu) Output impedance: 150 Ohm DA - Stereo Monitor Output Phones (9-12): As DA, but: Output: 2 x 6.3 mm TRS stereo jack, unbalanced Maximum output level @ 0 dBFS, High: +19 dBu Maximum output level @ 0 dBFS, Low: +2 dBV Max power per channel @ 32 Ohm load, 0.02% THD: 200 mW (2.5 Vrms, +10 dBu) Signal to Noise ratio (SNR) @ High: 116.5 dB (AES17), 118.5 dBA Signal to Noise ratio (SNR) @ Low: 115 dB (AES17), 117 dBA Output impedance: 2 Ohm MIDI: 2 x MIDI I/O via 5-pin DIN jacks - Galvanically isolated by optocoupled inpu Hi-speed mode: Jitter and response time typically below 1 ms Separate 28 byte FIFOs for input and output 2 x MIDI I/O via MADI Invisible transmission via User bit of channel 56 (up to 48 kHz) Invisible transmission via User bit of channel 28 (up to 96 kHz) Digital: Clocks: Internal, ADAT, AES, SPDIF, word clock Jitter suppression: > 50 dB (> 1 Hz) Effective clock jitter influence on AD and DA conversion: near zero PLL ensures zero dropout, even at more than 100 ns jitter Digital Bitclock PLL for trouble-free varispeed ADAT operation Supported sample rates: 28 kHz up to 200 kHz Digital Inputs: MADI: Optical via FDDI duplex SC connector 62.5/125 and 50/125 compatible Coaxial via BNC (Word Clock input), 75 Ohm High-sensitivity input stage (< 0.2 Vpp) Accepts 56 channel and 64 channel mode, plus 96k Frame Standard: up to 64 channels 24 bit 48 kHz S/MUX: up to 32 channels 24 bit 96 kHz S/MUX4: up to 16 channels 24 bit 192 kHz Lock range: 25 kHz – 54 kHz Jitter suppression: > 50 dB (> 1 Hz) AES/EBU: 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992 High-sensitivity input stage (< 0.3 Vpp) SPDIF compatible (IEC 60958) Accepts Consumer and Professional format Lock range: 27 kHz – 200 kHz Jitter suppression: > 50 dB (> 1 Hz) ADAT Optical: 2 x TOSLINK, format according to Alesis specification Standard: 2 x 8 channels 24 bit, up to 48 kHz Double Speed (S/MUX): 2 x 4 channels 24 bit 96 kHz Quad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHz Bitclock PLL ensures perfect synchronisation even in varispeed operation Lock range: 31.5 kHz – 50 kHz Jitter suppression: > 50 dB (> 1 Hz) SPDIF optical (ADAT 2): 2 x optical, according to IEC 60958 Accepts Consumer and Professional format Lock range: 27 kHz – 200 kHz Jitter suppression: > 50 dB (> 1 Hz) Word Clock: BNC Internal termination 75 Ohm switchable Automatic Double/Quad Speed detection and internal conversion to Single Speed SteadyClock guarantees super low jitter synchronization even in varispeed operation Not affected by DC-offsets within the network Signal Adaptation Circuit: signal refresh through auto-center and hysteresis Overvoltage protection Level range: 1.0 Vpp – 5.6 Vpp Lock Range: 27 kHz – 200 kHz Jitter suppression: > 50 dB (> 1 Hz) Digital Outputs: MADI: Optical via FDDI duplex SC connector 62.5/125 and 50/125 compatible Coaxial via BNC (Word Clock input), 75 Ohm High-sensitivity input stage (< 0.2 Vpp) Accepts 56 channel and 64 channel mode, plus 96k Frame Standard: up to 64 channels 24 bit 48 kHz S/MUX: up to 32 channels 24 bit 96 kHz S/MUX4: up to 16 channels 24 bit 192 kHz Lock range: 25 kHz – 54 kHz Jitter suppression: > 50 dB (> 1 Hz) AES/EBU: XLR, transformer-balanced, galvanically isolated, according to AES3-1992 Output level Professional 4.5 Vpp, Consumer 2.6 Vpp Format Professional according to AES3-1992 Amendment 4 Format Consumer (SPDIF) according to IEC 60958 Single Wire mode, sample rate 28 kHz up to 200 kHz ADAT: 2 x TOSLINK, format according to Alesis specification Standard: 2 x 8 channels 24 bit, up to 48 kHz Double Speed (S/MUX): 2 x 4 channels 24 bit 96 kHz Quad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHz SPDIF optical (ADAT 2): 2 x optical, according to IEC 60958 Accepts Consumer and Professional format Lock range: 27 kHz – 200 kHz Jitter suppression: > 50 dB (> 1 Hz) Word Clock: BNC Max. output voltage: 5 Vpp Output voltage @ 75 Ohm termination: 4.0 Vpp Output impedance: 10 Ohm Frequency range: 27 kHz – 200 kHz General: Power supply: Internal switching PSU, 100 - 240 V AC, 36 Watts Idle power consumption: 19 Watts Typical power consumption: 22-25 Watts Dimensions including rack ears (W x H x D): 483 x 44 x 210 mm / 19" x 1.73" x 8.5" Dimensions without rack ears (W x H x D): 440 x 44 x 210 mm / 17.3" x 1.73" x 8.3" Total depth: 240 mm / 9.4" Weight: 3 kg / 6.6 lbs Temperature range: +5° up to +50° Celsius (41° F up to 122°F) Relative humidity: < 75%, non condensing
