| Product Specifications | Roland FANTOM6 EX 61-Key Synthesizer Workstation Specifications

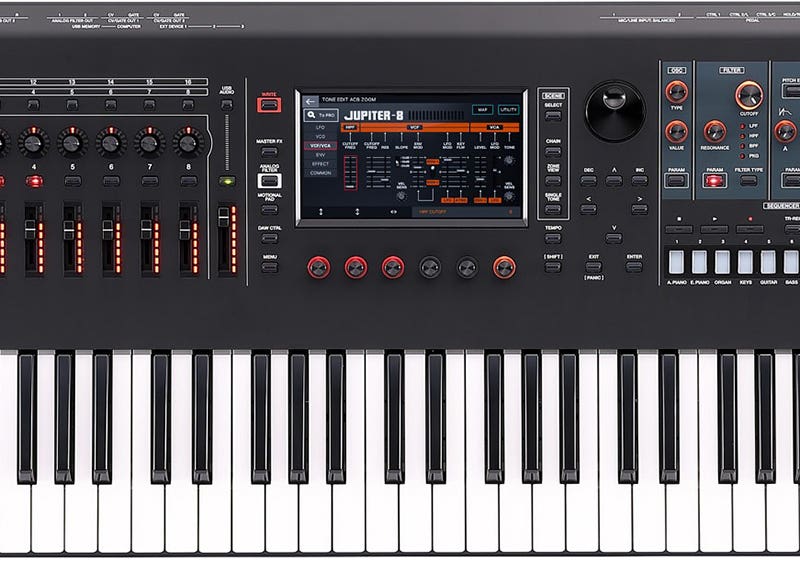

- Keyboard: 61 Keys (semi-weighted keyboard and channel aftertouch)
- Sound Generator:
- ZEN-Core
- V-Piano Technology (Only ZONE1)
- ACB (Only ZONE1)
- VTW Organ (Only ZONE2)
- SuperNATURAL Acoustic
- SuperNATURAL Acoustic Piano
- SuperNATURAL Electric Piano
- Various MODEL sound generators
- ZEN-Core Tones and Model Tones can import and export.
- Expansion:
- EXZ Series
- EXSN Series
- EXM Series
- ACB Series
- The expansion are rewritable internal sound generator memory.
- You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.
- Parts: 16 Zones (Internal + External)
- Scenes: 128 Scenes x 4 Bank (The Scenes can import and export.)
- Tones:
- Over 7,000 Tones
- Over 90 Drum kits
- Tone Remain: 16 zones (Tone Remain does not apply to V-Piano, ACB and VTW sounds.)
- Favorite: Rating System: 4 Steps (0--3)
- Tone Search / Scene Search: Rating, Character
- Effects:
- Multi-Effects: 16 systems, 93 types
- Part EQ: 16 systems
- Drum Part COMP: 6 systems
- Insertion Effect: 2 Systems, 90 Types (Serial, parallel connection selectable)
- TFX: 1 System, 90 Types
- Input MFX: 2 Systems (in Parallel), 90 Types
- Chorus: 9 types
- Reverb: 7 types
- Master Compressor
- Master EQ
- Input Reverb: 7 types
- Input EQ: 2 Systems (in Parallel)
- Analog Filter:
- STEREO
- Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
- Drive
- Amp
- Vocoder:
- Band: 13, 20, 32
- Type: Mono, Stereo
- Preset Setting: 10
- User Setting: 20
- Scene Chain:
- Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
- Set: 100
- Marker: 62 (0--9, A--Z, a--z) per 1 Chain Set
- Sequencer:
- MIDI Tracks: 16
- Group:16
- Pattern: 8 (per each Track)
- Pattern Length: 64 measures
- Recording Method: Realtime recording, Step recording, TR-REC
- Editing Method: Piano roll edit (Touch Edit / Automation support), Microscope
- Song: 1 (per Scene)
- File format: Original, SMF export/import supported
- PAD Sampler trigger data can be recorded.
- Sampler:
- Keyboard Multisample
- Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF
- Number of Samples: 8,000
- Number of Multisamples: 128
- Sampling Time: The maximum is 2 minutes 44 second (1 Sample).
- A total of approximately 2 GB (Share with Expansion titles)
- Keyboard Multisample can import and export as ZEN-Core Tone.
- PAD Sampler:
- Format: 16-bit linear, 44.1/48 kHz, WAV/AIFF import supported
- Maximum Polyphony: 8
- Number of Samples: 16 Pads x 4 Banks
- Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).
- A total of approximately 2 GB (including imported WAV files)
- When you use the PAD samples as KBD Wave, then you have to manipulation it.
- Internal Storage Space for Files: Size: 2 GB
- Other:
- Rhythm Pattern
- Arpeggiator
- Chord Memory
- Motional Pad
- PAD Mode
- Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
- AIRA LINK (When connect to MX-1)
- CV/Gate Control: 2 x CV/Gate or 3 x CV/1 x Gate
- Controllers:
- Pitch Bend/Modulation Lever *1
- Assignable Switch x 2 (S1/S2)
- Control knob x 8
- Slider x 8
- USB Audio slider
- Wheel x 2 *1
- Function knob x 6
- Sound Modified knob x 11 *1
- 4 x 4 Pad

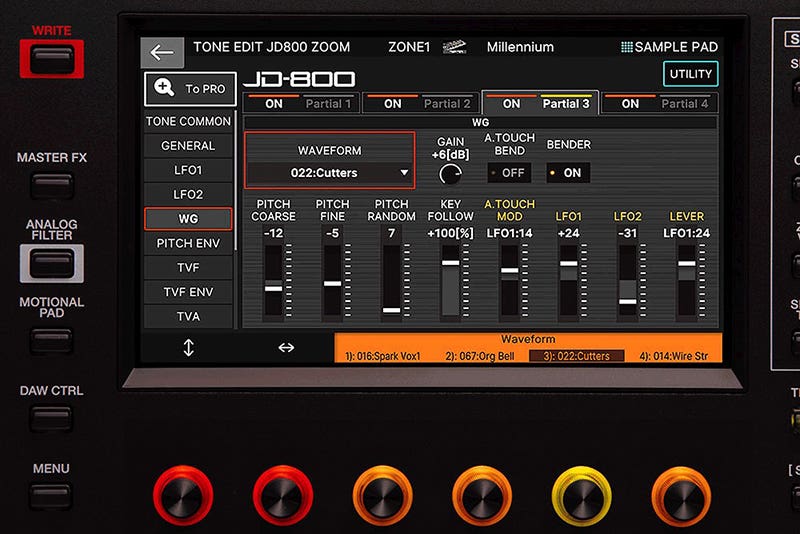

- Display: Graphic Type, 7", Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen, Wallpaper support)

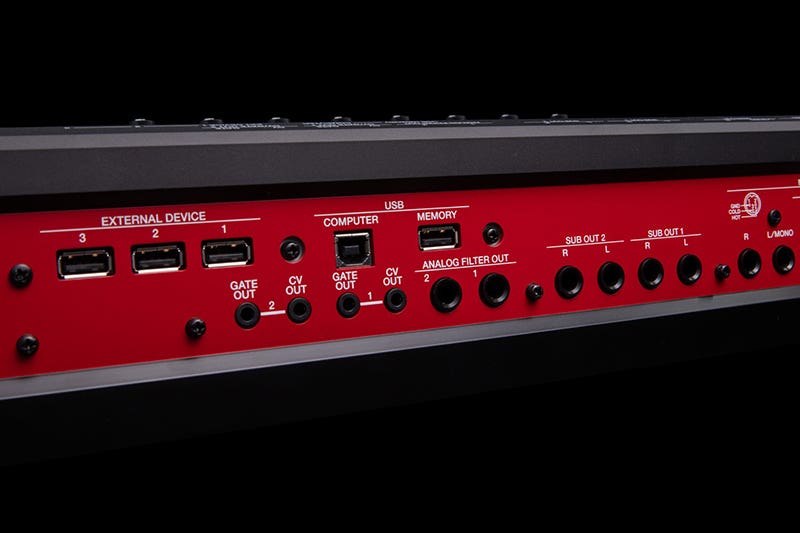

- Connectors:
- Headphones jack: Stereo 1/4" phone type
- MAIN OUT jacks (L/MONO, R) (1/4" phone type)
- MAIN OUT jacks (L, R) (XLR type) - SUB OUT1 jacks (L, R) (1/4" phone type)
- SUB OUT2 jacks (L, R) (1/4" phone type)
- ANALOG FILTER OUT jacks (1,2) (1/4" phone type)
- Mic/Line Input jacks: (1,2) (1/4" phone type/XLR type)
- 2 x CV OUT, 2 x GATE OUT
- FOOT PEDAL jacks (HOLD, CTRL1, CTRL2, CTRL3) * 1024 Step value support
- MIDI connectors (IN, OUT1, OUT2/THRU) * High-resolution velocity data output support
- USB MEMORY Port(USB A)
- USB COMPUTER Port (AUDIO/MIDI)(USB B)
- 3 x External Device Port(USB A):Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
- Audio Interface:
- Max 24 bit/96 KHz
- Record 16 Stereo Channel
- Playback 3 Stereo Channel
- External Memory: USB Flash drive (sold separately)
- Power Supply: AC 117-240 V 50/60 Hz
- Power Consumption: 50 W
- Dimensions (W x D x H): 1,084 x 403 x 106 mm / 42-11/16" x 15-7/8" x 4-3/16"
- Weight: 15.3 kg / 33 lbs 12 oz
- Accessories:
- Owner's Manual
- Power Cord
|
