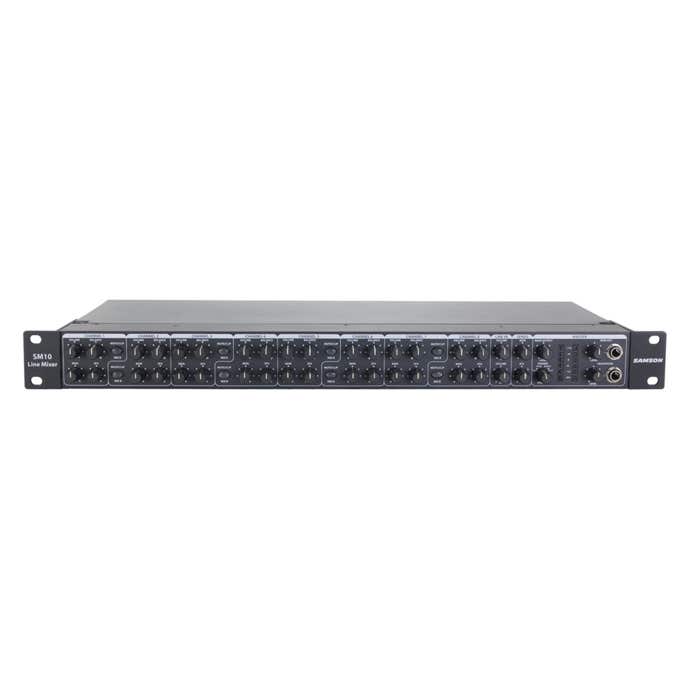

    The Samson SM10 line mixer is a versatile and reliable addition to your audio setup! This generously packed Samson SM10 stereo mixer is perfect on stage, in studios, boardrooms, health clubs, restaurants, houses of worship, and more. The SM10 line mixer features a 19 inch rackmount metal chassis unit is internally powered and can be easily integrated into any existing system to more efficiently group your signals.

    For either audio or video applications, the Samson SM10 rackmount stereo line mixer brings various signals together for a truly amazing audio experience!

    Samson SM10 Rackmount Stereo Line Mixer Features:
    • Ten channels (eight 1/4-inch stereo line inputs, two combination XLR-1/4-inch inputs)
    • Balance control for each channel
    • Switchable +4 dBu or -10 dBV line input level
    • Balanced main stereo XLR and 1/4-inch line outputs
    • Versatile signal routing
    • Low noise, discrete microphone pre-amplifiers with 48-volt phantom power
    • Two auxiliary sends
    • Front-panel headphone and monitor outputs with level controls
    • Flexible 6-segment LED meter/headphone source control
    • Center detents for all controls for use in low light situations
    • Single 19-inch rackmount metal chassis with internal power supply
    Inputs
    The Samson SM10 provides ten channels with 1/4-inch stereo line inputs and a balance control for each channel, two channels include XLR mic inputs. This allows you to blend the relative levels of stereo inputs to your liking. In addition, each channel includes a switch for +4 dBu or -10 dBV line level input.

    Outputs
    The Samson SM10 line mixer provides electronically balanced main stereo XLR and 1/4-inch line outputs. The SM10 provides versatile signal routing via Main Mix, Mix B, Monitor and EFX bus outputs, as well as low noise and discrete microphone pre-amplifiers with 48-volt phantom power.

    Two auxiliary sends can also be used to route signals to external effects, or create a separate mix for on-stage monitors. The SM10 features front panel headphone and monitor outputs with dedicated level controls. The mix may be audited with the SM10's 6-segment LED meter and a flexible meter/headphone source control.

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    Samson SM10 Rackmount Stereo Line Mixer Specifications

    Samson SM10 Rackmount Stereo Line Mixer Specifications
    Product Specifications

    Samson SM10 Rackmount Stereo Line Mixer:

    • Inputs:
      • Microphone: XLR balanced (2)
    • Line:
      • 1/4 inch TRS balanced (Ch 1-8)
      • 1/4 inch stereo (Ch 9-10)
    • Input Impedance:
      • Microphone: 1.5K ohms
      • Line:
        • 23K ohms (+4 dBu, Ch 1-8)
        • 40K ohms (-10 dBV, Ch 1-8)
        • 20K ohms (Ch 9-10)
    • Maximum Gain:
      • Microphone: 65 dB
      • Line: 39 dB
    • Line Operating Level: +4 dBu / -10 dBV selectable
    • Maximum Input Level (1 kHz, +/-3 dB):
      • Microphone Input: -4 dBu
      • Line Input: +28 dBu
    • Equivalent Input Noise: - 123 dBu unweighted
    • Outputs:
      • Main Outputs:
        • Type:
          • 1/4 inch TRS balanced (2)
          • XLR (2)
        • Output Impedance: 200 ohms Main Out
        • Gain Range: -∞ to +15 dB
        • Max output level: +22 dBu
        • MON (Pre Fade Out): 1/4 inch impedance balanced mono output (front panel), Stereo MON (rear panel)
        • EFX (Post Fade Out): 1/4 inch unbalanced
        • Output Impedance: 100 ohms
        • Headphone: 1/4 inch TRS Stereo
        • Output (600 Ohm load): 100 mW
    • System:
      • Frequency Response: 10 Hz - 23 kHz +/-1 dB
      • Signal-to-noise ratio: > 90 dB typical
      • THD: <0.01% typical
      • Crosstalk (1 kHz):
        • -70 dB between input channels
        • -70 dB between input/output channels
      • Phantom Power: 48 Volts DC
      • Power Requirements: 120-240 VAC / 50-60 Hz
      • Dimensions (LxWxH): 19 x 8.25 x 1.75 inches/ 484 x 210 x 44.5mm
      • Weight: 6 lbs / 2.8 kg
