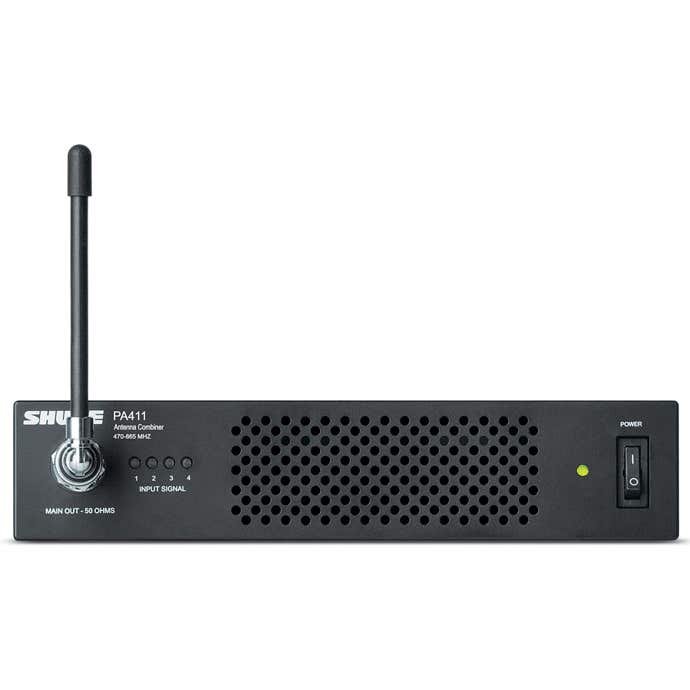

    The Shure PA411 Antenna Combiner distributes DC power and RF signal for up to four Shure PSM®300 transmitters. The compact half-rack system significantly reduces the amount of antennas and power supplies needed when using multiple systems.

    Shure PA411 Four Port Antenna Combiner Features
    • Wideband 470 to 865 MHz frequency range
    • Main RF output connects to standard 1/4 wave PSM antenna
    • RF LED Indicators display signal present, signal overload per input
    • Power output distributes DC power to PSM transmitters (accessory power cable required)
    • Front panel power switch
    Shop Similar Models

    Shure PA411 Four Port Antenna Combiner Specifications

    Shure PA411 Four Port Antenna Combiner Specifications
    Product Specifications Shure PA411 Four Port Antenna Combiner Specifications
    • Power Requirements: 15 VDC
    • DC Output: 12 VDC (×4)
    • Output Current Combined total from all DC outputs: 1.4 A, maximum
    • Operating Temperature Range: -18 °C to 63 °C
    • Dimensions: 42 × 177 × 198 mm H × W × D
    • Net Weight: 1.62 kg (3.6 lbs)
    • RF Input Connector Type: BNC
    • RF Frequency Range: 470 to 865 MHz
    • Maximum Input Level: 20 dBm Per Channel
    • Input Port Isolation: 50 dB, typical
    • RF Input Power Operating Range Per Channel: 4.5 to 15 dBm
    • LED Indicator Minimum Detection Threshold: 3 dBm ± 1 dB
    • RF Overload LED Threshold: 17.5 dBm ± 1 dB
    • Impedance: 50 O
    • RF Output RF Frequency Range: 470 to 865 MHz
    • Output Intercept Point (OIP3): 48 dBm, typical
    • Connector Type: BNC
    • Impedance: 50 O
    • Output to Input: 40 dB, typical
    • Input to any Output Port: -5 to 0 dB
