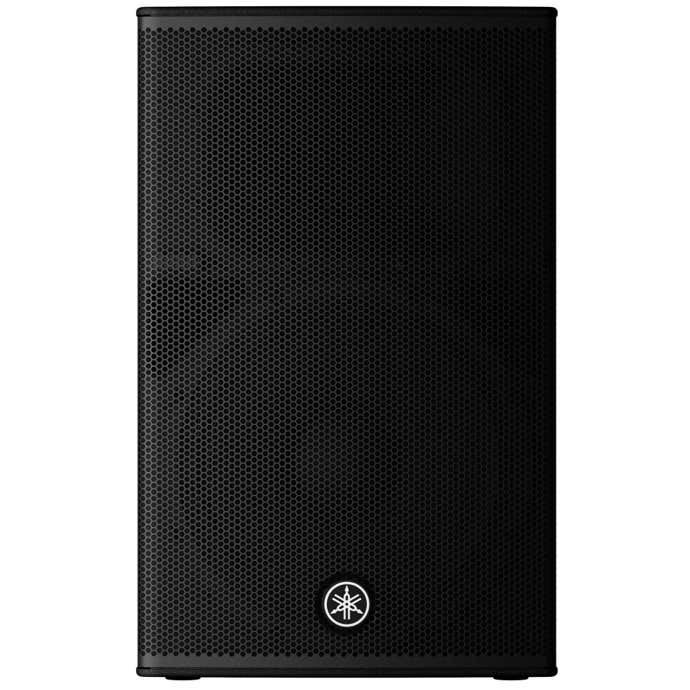

The CHR15 loudspeaker features a rugged wooden cabinet coated with a tough polyurea coating. Designed for both portable and permanent installation, the CHR15 offers dual 35mm pole sockets, one at zero degrees and the other a 7 degree downtilt, and is also equipped with 3 rigging points to accept optional 10mm eyebolts. Sturdy Dual SpeakOn NL4MP connections assure a solid connection and allow easy wiring to a second cabinet.
Yamaha CHR15 15-Inch Passive PA Speaker Features:
- 15" LF driver with a 2.5" voice coil
- 1.4" voice coil HF driver mated to a 1" (H)90° x (V)60° Constant Directivity Horn
- Dual 35 mm pole sockets allow straight 0° or a 7° downtilt if required
- Maximum 125dB SPL of output and wide frequency response range of 49Hz-20kHz3 rigging points (Top x 2, Rear x 1) M10
- Durable plywood enclosure delivering outstanding acoustic performance
