    Zoom R20: A Touchscreen Workstation to Track, Mix, and Create

    The Zoom R20 multitrack recorder makes it easier than ever to take your ideas from sketch to finished song, no laptop required. With a full-color touchscreen, 16-track recording, and built-in effects, it’s a complete production hub that’s as intuitive as it is powerful.

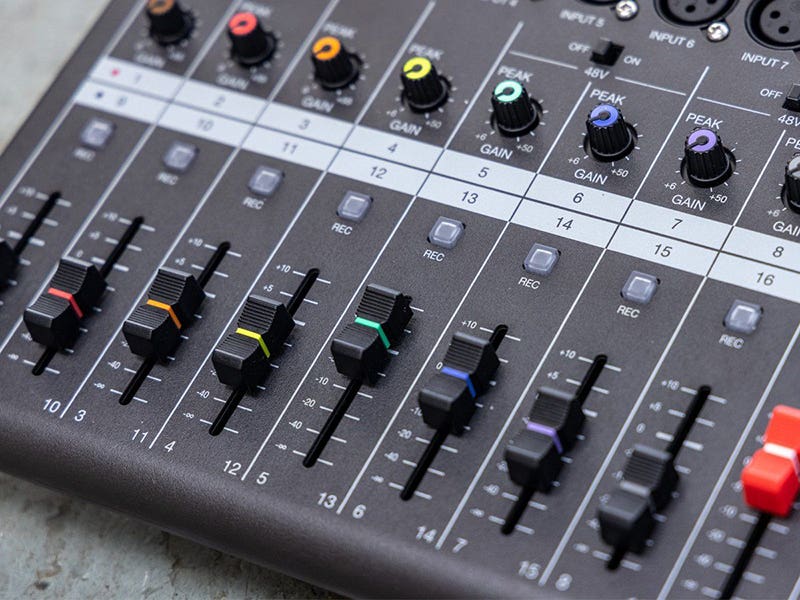

    Zoom R20 Creative Tools

    Creative Tools and Intuitive Workflows

    The Zoom R20 packs studio-grade sound and powerful tools into a streamlined interface that keeps your focus on the music. From clean preamps to onboard effects, it’s ready to capture and shape pro-level tracks.

    • Record up to 16 tracks (8 simultaneously) for full-band production
    • Color-coded faders and track sections streamline navigation and avoid mistakes
    • Built-in drum machine with 150 rhythm patterns across 30 genres
    • 18 onboard synth sounds with touchscreen or MIDI keyboard control
    • Onboard EQ, compression, and multi-FX engine powered by Guitar Lab
    • Standard MIDI file import for easy backing tracks
    • Low-noise, high-headroom preamps; Zoom’s best yet

    Great sound starts here, no extra gear required.

    Compact Form, Smart Layout, and Clean Connections

    The Zoom R20 multitrack recorder keeps your creative space tidy and your workflow tight. With a clean interface, color-coded controls, and flexible I/O, it's made for serious music production in a footprint that fits any desk.

    • 4.3" color LCD touchscreen makes editing and mixing feel intuitive
    • Six XLR inputs + two combo jacks with Hi-Z and phantom power support
    • Compact desktop form factor: 14.84" W × 9.33" D × 2.13" H
    • USB-C connectivity enables use as an 8-in / 4-out audio interface
    • SD card slot supports SDHC (up to 32GB) and SDXC (up to 1TB) cards
    • Locking AC adapter prevents accidental power loss during takes
    • Headphone output + dedicated monitor outs for mixing and playback
    • Optional Bluetooth adapter unlocks wireless app control from iOS devices

    Designed for creators who want hands-on control without the learning curve.

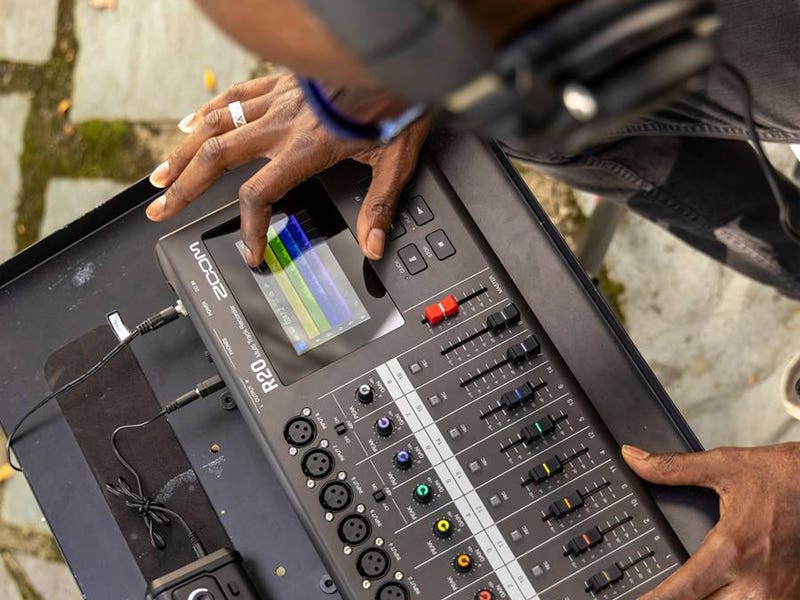

    Zoom R20 Compact Form

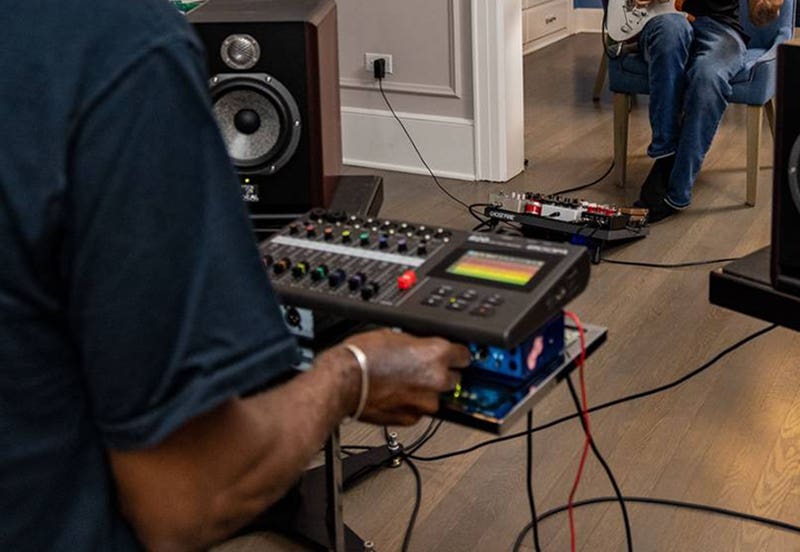

    Zoom R20 Multitrack Recorder

    Ditch the DAW and Stay in the Zone with the Zoom R20 Multitrack Recorder

    The Zoom R20 multitrack recorder gives you everything you need to write, record, and mix without getting bogged down by tech. Whether you're laying down full-band sessions or building beats with synths and loops, the R20 puts pro features in a hands-on, hassle-free package, so you can focus on the music, not the menu diving.

    Zoom R20 Features:

    • 4.3" full-color LCD touchscreen with drag, drop, swipe, and pinch controls
    • Record up to 16 tracks, 8 simultaneously
    • Six XLR inputs + two combo XLR/TRS jacks
    • Hi-Z input on channel 1, phantom power on inputs 5–8
    • Color-coded faders, gain knobs, and track regions for fast workflow
    • Built-in editing tools for cut, copy, paste, and looping
    • Onboard effects including EQ, compression, reverb, and more
    • Preloaded drum loops and 18 built-in synth sounds
    • Standard MIDI file support for backing tracks and sequencing
    • USB-C port for 8-in / 4-out audio interface mode
    • SDHC and SDXC card support up to 1TB
    • Locking AC power adapter prevents accidental disconnects
    • Headphone and monitor outputs for real-time monitoring and mixing
    • Optional BTA-1 Bluetooth adapter enables iOS wireless control
    • VoiceOver accessibility support for visually impaired users
    • Compatible with Zoom Guitar Lab for expanded effects library

    CALIFORNIA PROPOSITION 65 WARNING

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Shop Similar Models

    Zoom R20 MultiTrack Digital Recorder Specifications

    Zoom R20 MultiTrack Digital Recorder Specifications
    Product Specifications

    Zoom R20 MultiTrack Digital Recorder Specifications

    • Inputs/Outputs:
      • Inputs:
        • Mic/Line (mono): 8
      • Outputs:
        • Master Out: 1
        • Phones: 1
    • Inputs:
      • Mic/Line (mono):
        • Connectors:
          • XLR/TRS combo jacks × 2
          • XLR × 6 (XLR: 2 HOT/TRS: TIP HOT)
        • Input Gain: −3 – +40 dB
        • Input Impedance:
          • XLR: 3.9 kΩ
          • TRS: 5.3 kΩ/1 MΩ (when Hi-Z is ON, for INPUT 1 only)
        • Maximum Input Level: +4 dBu (@0 dBFS)
        • Phantom Power: +48 V (INPUTS 5–8, switchable in pairs)
        • Equivalent Input Noise: –121 dBu or less (IHF-A) with +40dB/150Ω input
        • Frequency Response: –1.0 dB: 20 Hz – 20 kHz
    • Outputs:
      • Master Out:
        • Connectors: 2 TRS phone jacks (balanced)
        • Maximum Output Level: +14 dBu
        • Output Impedance: 200 Ω
    • Phones:
      • Connector: 1 standard stereo phone jack
      • Maximum Output Level: 20 mW + 20 mW (into 32Ω load)
      • Output Impedance: 33 Ω
      • Track Settings: Pan: N/A
    • EQ:
      • High: 10 kHz, ±12 dB, shelving
      • Middle: 2.5 kHz, ±12 dB, peaking
      • Low: 100 Hz, ±12 dB, shelving
      • Send Effect: N/A
      • Stereo Link: N/A
      • Comp/Limiter/Gate: N/A
    • Recorder:
      • Maximum Simultaneous Recording Tracks: 8
      • Maximum Simultaneous Playback Tracks: 16
      • Recording Format: 44.1 kHz, 16/24-bit, mono/stereo WAV
      • Recording Media:
        • 4–32GB cards compatible with the SDHC specification
        • 64–512GB cards compatible with the SDXC specification
    • Effects:
      • Maximum Number of Simultaneous Effects:
        • 3 effects
        • One insert effect on one channel or one send effect available to all tracks
      • Patch Memories: 50
      • Guitar Lab Compatible: N/A
    • Tuner:
      • Chromatic/Guitar/Bass/Open
      • A/Open
      • D/Open
      • E/Open
      • G/DADGAD
    • Metronome:
      • Time signatures:
        • 3/4
        • 4/4
        • 6/8
      • Tempo range: 40.0–250.0 BPM
    • Rhythm Loops:
      • Sound source format: PCM
      • Number of loops: 150 or more
    • Synth:
      • Polyphony: 8
      • Sound Source Format: FM
      • Number of Sound Types: 18 (including PCM drum kit)
      • Display: 4.3" (480×272) full-color touchscreen LCD
    • USB Connector: USB Type-C (Use a USB cable that supports data transfer. USB bus power is not supported.)
    • Audio Interface Operation:
      • Stereo Mix:
        • USB 2.0 Full Speed
        • 44.1 kHz, 24-bit 2-in/2-out
      • Multitrack:
        • USB 2.0 High Speed 44.1 kHz, 16/24-bit
        • 8-in/4-out
    • Mass Storage Operation:
      • Host/Device: USB 2.0 High Speed (5V/500mA power supplied when host)
      • Guitar Lab Connection: USB 1.1 Full Speed
      • USB MIDI keyboard Connection: USB 1.1 Full Speed (5V/500mA power supplied)
      • DAW Connection (control surface) Function: USB 1.1 Full Speed
    • Remote: Dedicated wireless adapter (ZOOM BTA-1)
    • Power: AC adapter (ZOOM ZAD-1220): 12 V/2.0 A
    • Power Consumption: 11 W maximum
    • Ext. Dimensions (W x D x H): 378 x 206 x 58 mm
    • Weight (unit only): 1.33 kg
